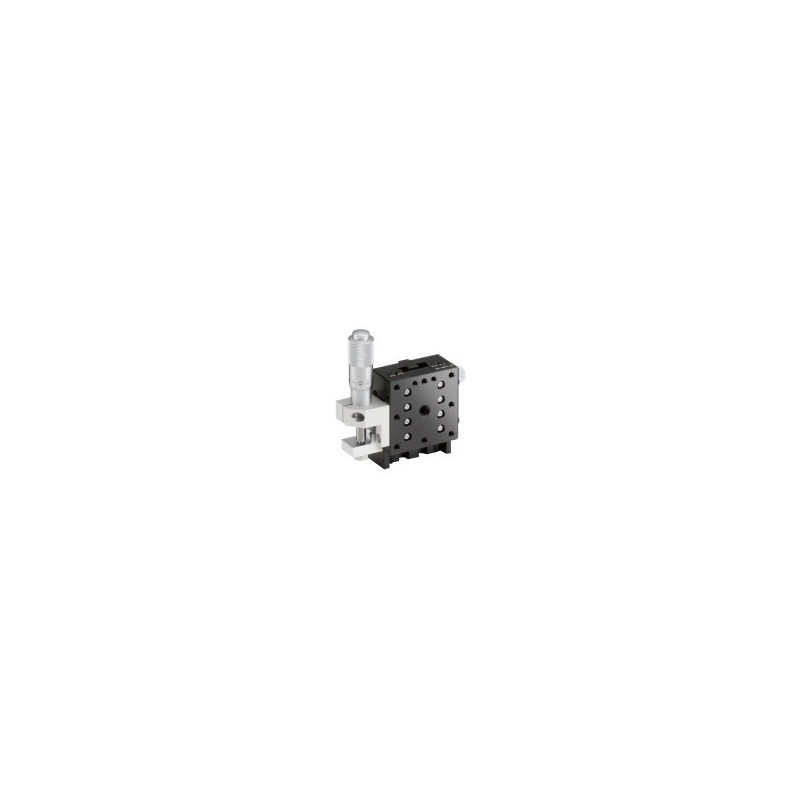

OSE-TAM-3L: Z axis, 40 x 40 mm

Reference number: OSE-TAM-403L

Option

Taille de la table en mm

Version

Course en mm

Option

Taille de la table en mm

Version

Course en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.15

Downloads

OSE-TAM-3L.pdf

OSE-TAM-403L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.3

Downloads

OSE-TAM-3L.pdf

OSE-TAM-603L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 80×80
Maximum XYZ-travel [mm]: 7.5
Travel z-axis [± mm]: 7.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 7
Max. Moment Capacity / Roll [Nm]: 7
Moment Stiffness / Pitch [´´/Ncm]: 0.12
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-TAM-4L.pdf

OSE-TAM-803L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-TAM-651.pdf

OSE-TAM-653L-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.15

Downloads

OSE-TAM-3L.pdf

OSE-TAM-403LWPUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.15

Downloads

OSE-TAM-3L.pdf

OSE-TAM-403LUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.15

Downloads

OSE-TAM-3L.pdf

OSE-TAM-403RLUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-TAM-3L.pdf

OSE-TAM-653RL-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-TAM-3L.pdf

OSE-TAM-653LUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 20
Squareness [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-TAM-4L.pdf

OSE-TAM-653RLUU_STP.zip

ManualStages.zip

Actuators.pdf
