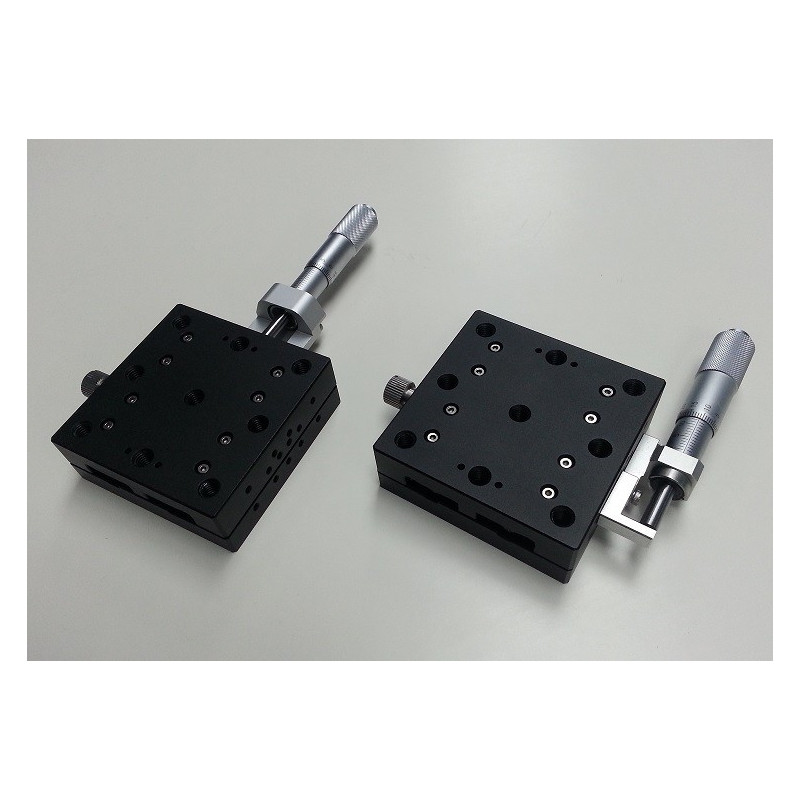

OSE-TADC-651: X axis, 65 x 65 mm

Reference number: OSE-TADC-651C25-M6

Modèle

Version

Position du micromètre

Modèle

Version

Position du micromètre

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651C25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651S25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-651SR25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-651C25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-651S25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.31

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-651SR25UU_STP.zip

ManualStages.zip

Actuators.pdf
