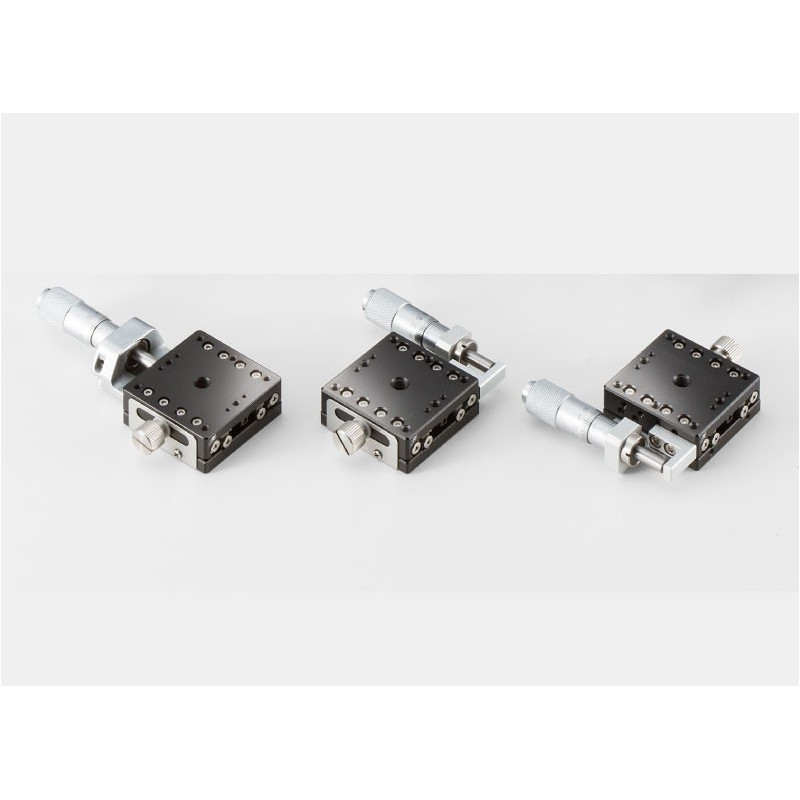

OSE-TADC-401: X axis, 40 x 40 mm

Reference number: OSE-TADC-401C

Modèle

Version

Position du micromètre

Modèle

Version

Position du micromètre

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-401C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-401S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-SZ.pdf

OSE-TADC-401SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-401CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-401SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Moment Stiffness / Roll [´´/Ncm]: 0.36
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-401SRUU_STP.zip

ManualStages.zip

Actuators.pdf
