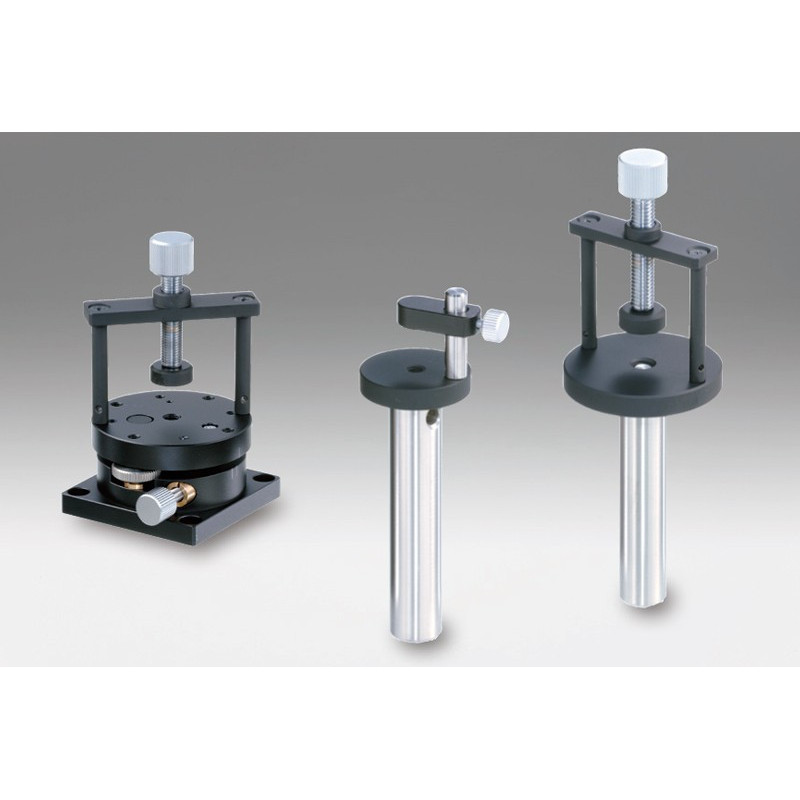

OSE-KKD: Rotation stages, Diameter25 mm

Reference number: OSE-KKD-25C

Taille de la table en mm

Capacité de charge en N

Version

Taille de la table en mm

Capacité de charge en N

Version

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Rotation stages
Tabel Size [mm]: ?25
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 0.9
Travel per Knob Rotation Alpha axis : about 2.2
Travel per Knob Rotation Beta axis : about 2.2
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 1
Gewicht in kg: 0.05

Downloads

OSE-KKD.pdf

OSE-KKD-25C_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?40
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 2
Travel per Knob Rotation Alpha axis : about 1.5
Travel per Knob Rotation Beta axis : about 1.5
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 2
Gewicht in kg: 0.1

Downloads

OSE-KKD.pdf

OSE-KKD-40C_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?60
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 1.7
Travel per Knob Rotation Alpha axis : about 1
Travel per Knob Rotation Beta axis : about 1
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 4.9
Gewicht in kg: 0.3

Downloads

OSE-KKD.pdf

OSE-KKD-60C_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?40
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 2
Travel per Knob Rotation Alpha axis : about 1.5
Travel per Knob Rotation Beta axis : about 1.5
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 2
Gewicht in kg: 0.1

Downloads

OSE-KKD.pdf

OSE-KKD-40CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?65
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 1.68
Travel per Knob Rotation Alpha axis : about 1.2
Travel per Knob Rotation Beta axis : about 1.2
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 4.9
Gewicht in kg: 0.5

Downloads

OSE-KKD.pdf

OSE-KKD-65C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?65
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): ±3
Rotation Range [°]: ±3
Travel per Knob Rotation Theta axis (Narrow side direction): about 1.68
Travel per Knob Rotation Alpha axis : about 1.2
Travel per Knob Rotation Beta axis : about 1.2
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 4.9
Gewicht in kg: 0.5

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-KKD-65CUU_STP.zip

ManualStages.zip

Actuators.pdf
