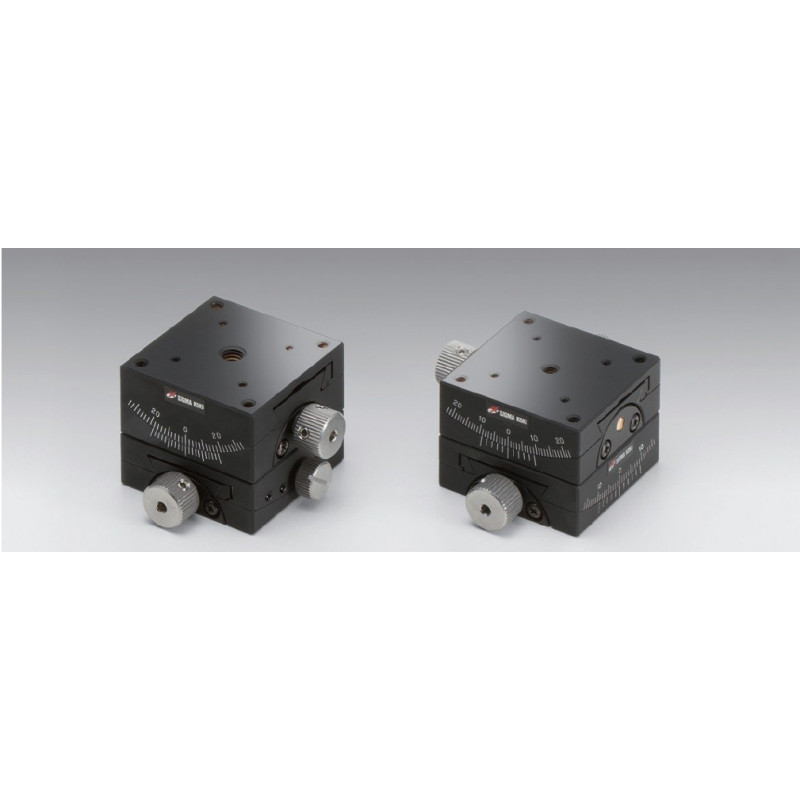

OSE-GOH-40B: Goniometers, 40 x 40 mm

Reference number: OSE-GOH-40B15

Modèle

Version

Hauteur du centre de rotation en mm

Modèle

Version

Hauteur du centre de rotation en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15RUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B35UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35RUU_STP.zip

ManualStages.zip

Actuators.pdf
