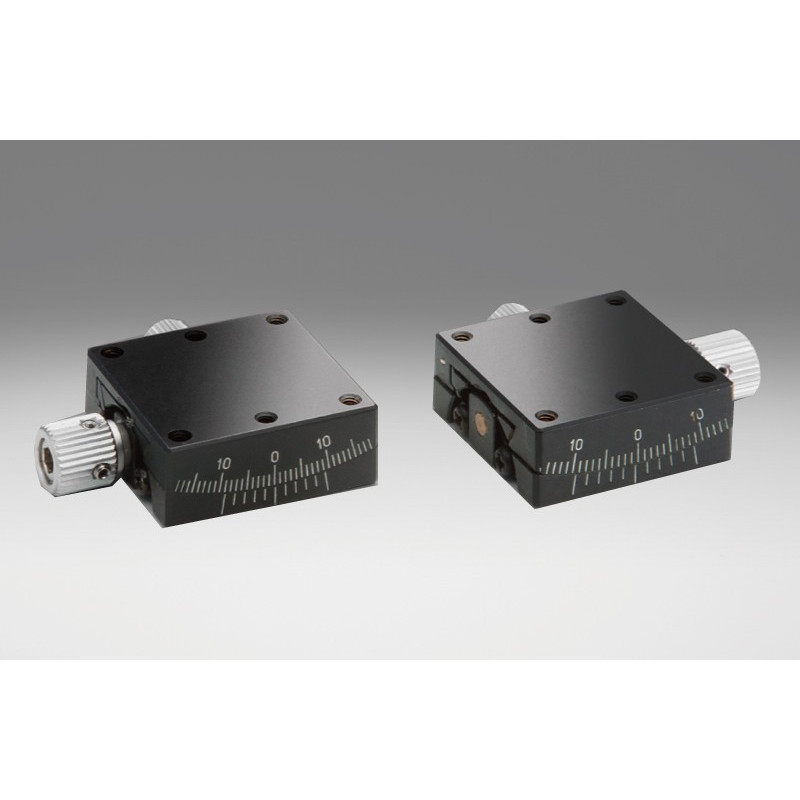

OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

Reference number: OSE-GOH-25A18

Modèle

Hauteur du centre de rotation en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 18±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 3.1
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.07

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25A18_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 30±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.17
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.06

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25A30_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 40±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.67
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.06

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-25A40_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 18±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.17
Travel per Knob Rotation Beta axis : about 3.1
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.35
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.13

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25B18_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 30±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.67
Travel per Knob Rotation Beta axis : about 2.17
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.35
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.12

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-25B30_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 18±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 3.1
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.07

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25A18R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 30±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.17
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.06

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25A30R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 40±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.67
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.4
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.06

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-25A40R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 18±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.17
Travel per Knob Rotation Beta axis : about 3.1
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.35
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.13

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-25B18R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 25×25
Rotation Center Height [mm]: 30±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.67
Travel per Knob Rotation Beta axis : about 2.17
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 19.6
Max. Moment Capacity / Pitch [Nm]: 0.35
Max. Moment Capacity / Roll [Nm]: 0.35
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.12

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-25B30R_STP.zip

ManualStages.zip

Actuators.pdf
