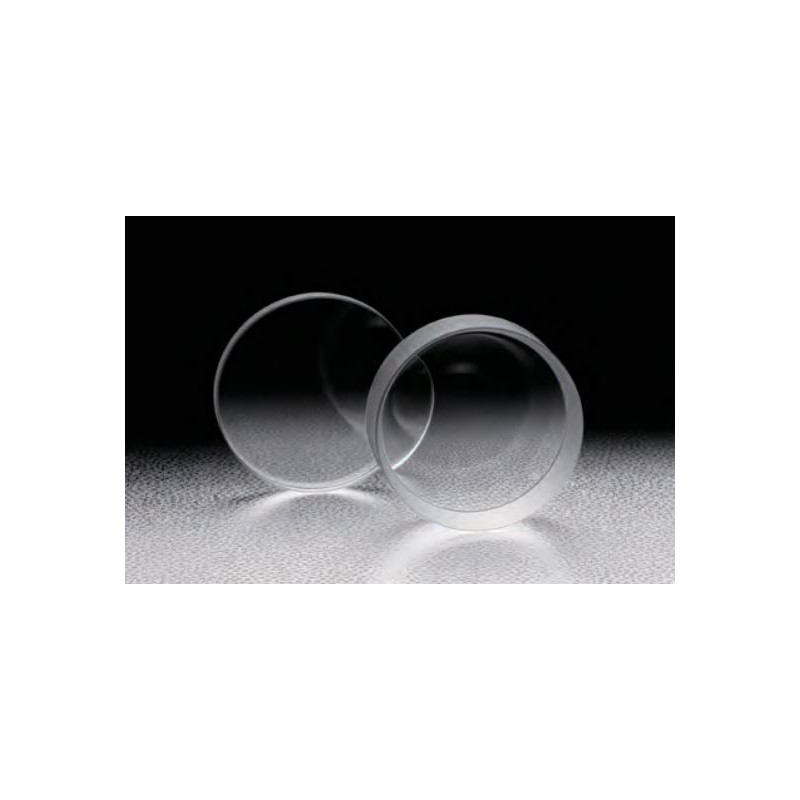

Plano Concave Lens, AR [nm]: 400 - 700, BK7

Reference number: OSE-SLB-10-15NM

These simple negative lenses alone form a virtual image of a distant object or a collimated light source. In combination with other optics they reduce the power of the system.

Longueur focale en mm

Diamètre / AxB en mm

Longueur focale en mm

Diamètre / AxB en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20
Shape: round
Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -15
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -16.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-15NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -20
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -21.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-20NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -25
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-25NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -30
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-30NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -40
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -50
Edge thickness te [mm]: 2.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -70
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -80
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -90
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -100
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -20
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -21.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-20NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -25
Edge thickness te [mm]: 4.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-25NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -30
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-30NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -40
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -50
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -60
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -70
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -80
Edge thickness te [mm]: 2.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -100
Edge thickness te [mm]: 2.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -25
Edge thickness te [mm]: 6.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-25NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -30
Edge thickness te [mm]: 5.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-30NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -40
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -50
Edge thickness te [mm]: 4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -60
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -70
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -80
Edge thickness te [mm]: 3.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -90
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -120
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-120NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -150
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -30
Edge thickness te [mm]: 8.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-30NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -35
Edge thickness te [mm]: 7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -36.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-35NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -40
Edge thickness te [mm]: 6.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -50
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -60
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -70
Edge thickness te [mm]: 4.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -80
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -100
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -120
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-120NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -150
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -170
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -171.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-170NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -200
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-200NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -30
Edge thickness te [mm]: 8.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-30NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -40
Edge thickness te [mm]: 6.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -50
Edge thickness te [mm]: 5.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -60
Edge thickness te [mm]: 4.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -70
Edge thickness te [mm]: 4.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -80
Edge thickness te [mm]: 4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -90
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -100
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -150
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -200
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-200NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -35
Edge thickness te [mm]: 9.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -36.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-35NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -40
Edge thickness te [mm]: 8.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-40NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -50
Edge thickness te [mm]: 6.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -60
Edge thickness te [mm]: 5.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -70
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -80
Edge thickness te [mm]: 4.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -90
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -100
Edge thickness te [mm]: 4.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -120
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-120NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -170
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -171.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-170NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -200
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-200NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -220
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -221.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-220NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -250
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -251.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-250NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -50
Edge thickness te [mm]: 11.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-50NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -60
Edge thickness te [mm]: 9.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-60NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -70
Edge thickness te [mm]: 8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -80
Edge thickness te [mm]: 7.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -100
Edge thickness te [mm]: 6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -70
Edge thickness te [mm]: 13
Center thickness tc [mm]: 3
Back focal length fb [mm]: -72

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -80
Edge thickness te [mm]: 11.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -82

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -90
Edge thickness te [mm]: 10.3
Center thickness tc [mm]: 3
Back focal length fb [mm]: -92

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -100
Edge thickness te [mm]: 9.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -102

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -120
Edge thickness te [mm]: 8.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: -122

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-120NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -150
Edge thickness te [mm]: 7.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -152

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -170
Edge thickness te [mm]: 6.6
Center thickness tc [mm]: 3
Back focal length fb [mm]: -172

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-170NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -200
Edge thickness te [mm]: 6.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -202

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-200NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -220
Edge thickness te [mm]: 5.8
Center thickness tc [mm]: 3
Back focal length fb [mm]: -222

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-220NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -250
Edge thickness te [mm]: 5.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -252

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-250NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -300
Edge thickness te [mm]: 5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -302

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-300NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -70
Edge thickness te [mm]: 13.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -72

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-70NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -80
Edge thickness te [mm]: 11.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: -82

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-80NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -90
Edge thickness te [mm]: 10.5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -92

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-90NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -100
Edge thickness te [mm]: 9.6
Center thickness tc [mm]: 3
Back focal length fb [mm]: -102

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-100NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -150
Edge thickness te [mm]: 7.3
Center thickness tc [mm]: 3
Back focal length fb [mm]: -152

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-150NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -200
Edge thickness te [mm]: 6.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: -202

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-200NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -250
Edge thickness te [mm]: 5.5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -252

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-250NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 400 - 700
Transmission in AR range: 99%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 85
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -300
Edge thickness te [mm]: 5.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -302

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-300NM_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls
