Compact Diode Lasers
Reference number: CRL-Diodelaser

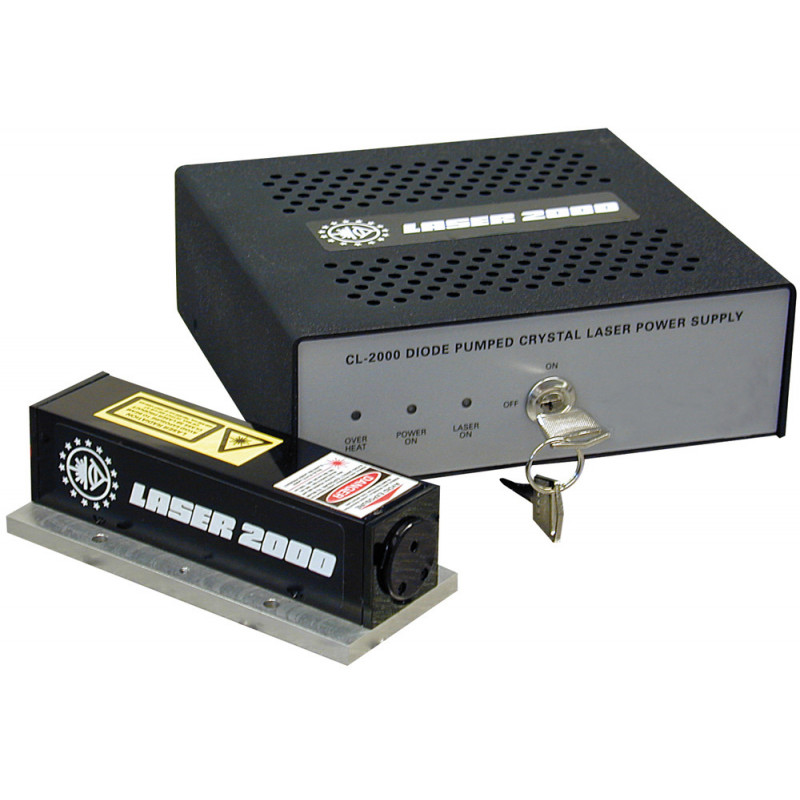

The small design of the laser head and the compact dimensions of the controller facilitate the integration of the laser into the experiment.
Reference number: CRL-Diodelaser
The small design of the laser head and the compact dimensions of the controller facilitate the integration of the laser into the experiment.
Need more info?
Contact our expert.
Our Team
Description
Thanks to a feature that stabilizes the temperature of the laser head and a low-noise controller, a high degree of long-term stability and low noise levels can be achieved. Beam forming optics guarantee an almost perfect circular beam with a very good M2 value. The available wavelengths range from UV at 375nm through the visible spectrum to near infrared at 1552nm. The optical power lies between 5 mW and 800 mW.
Specifications 375 - 488 nm
Wavelength (nm) | 375 | 405 | 445 | 473 | 488 |
Opt. Power (mW) | 5-150 | 10-1W | 10-400 | 5-20 | 5-50 |
Power Stability over 24 h | <1% | <1% | <1% | <1% | <1% |
Noise (rms, 10Hz - 20 MHz) | <0,5% | <0,5% | <0,5% | <0,5% | <0,5% |
Transversal mode TEM00, M2 | <1,2 | <1,2 | <1,2 | <1,2 | <1,2 |
Beam Diameter 1/e2 (mm) | 1 | 1 | 1 | 1 | 1 |
Divergence (mrad) | 0,6 | 0,6 | 0,6 | 1 | 1 |
Specifications 514 - 690 nm
Wavelength (nm) | 514 | 633 | 640 | 660 | 690 |
Opt. Power (mW) | 10-15 | 25-50 | 25-100 | 25-100 | 30-50 |
Power Stability over 24 h | <1% | <1% | <1% | <1% | <1% |
Noise (rms, 10Hz - 20 MHz) | <0,5% | <0,5% | <0,5% | <0,5% | <0,5% |
Transversal mode TEM00, M2 | <1,2 | <1,1 | <1,1 | <1,1 | <1,1 |
Beam Diameter 1/e2 (mm) | 1 | 1 | 1 | 1 | 1 |
Divergence (mrad) | 1 | 1 | 1 | 1 | 1 |
Specifications 785 - 1550 nm
Wavelength (nm) | 785 | 808 | 852 | 980 | 1550 |
Opt. Power (mW) | 70-120 | 100-7W | 100-2W | 100-3W | 80-800 |
Power Stability over 24 h | <1% | <1% | <1% | <1% | <1% |
Noise (rms, 10Hz - 20 MHz) | <0,5% | <0,5% | <0,5% | <0,5% | <0,5% |
Transversal mode TEM00, M2 | <1,1 | <1,1 | <1,1 | <1,1 | <1,1 |
Beam Diameter 1/e2 (mm) | 1 | 1 | 1 | 1 | 1 |
Divergence (mrad) | 1 | 1 | 1 | 1 | 1 |
