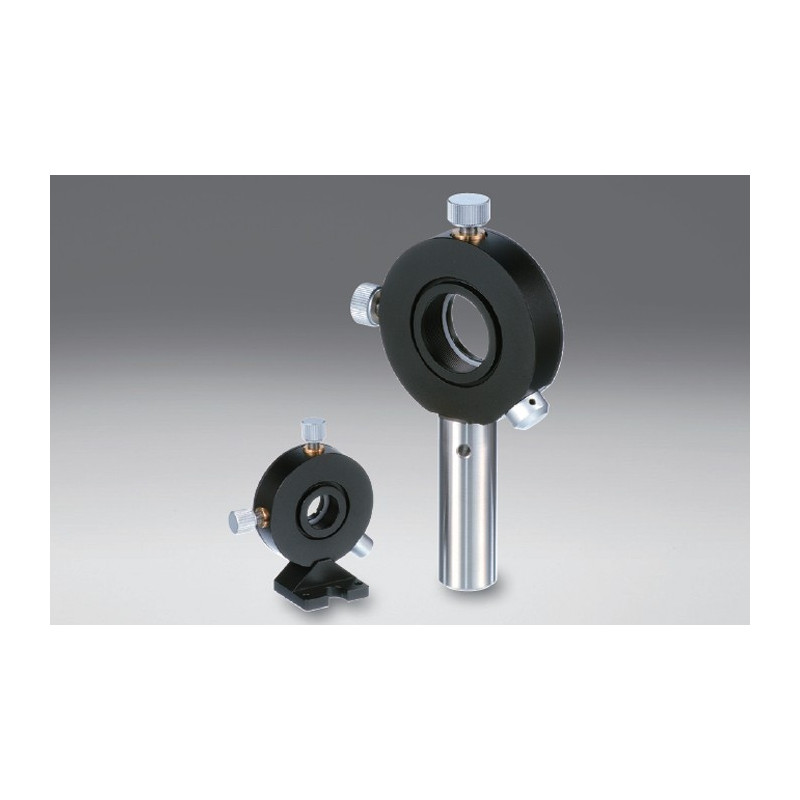

OSE-LHCM: Caliper Variable Lens Holders
Reference number: OSE-LHCM-10
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
- Compatible optics diameter [mm]: 10
- Compatible optic thickness [mm]: 1 - 6
- Centering adjustment range: 1
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.03
- B [mm]: 7
- C [mm]: 12.5
- Compatible optics diameter [mm]: 12.7
- Compatible optic thickness [mm]: 1 - 8
- Centering adjustment range: 2
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.05
- B [mm]: 12
- C [mm]: 20
- Compatible optics diameter [mm]: 15
- Compatible optic thickness [mm]: 1 - 8
- Centering adjustment range: 2
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.05
- B [mm]: 12
- C [mm]: 20
- Compatible optics diameter [mm]: 20
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.27
- B [mm]: 17
- C [mm]: 27.5
- D [mm]: 58
- E [mm]: max 130
- F [mm]: max 42
- G [mm]: 29
- H [mm]: 18
- I [mm]: 6
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.28
- B [mm]: 22
- C [mm]: 30
- D [mm]: 64
- E [mm]: max 137
- F [mm]: max46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- Compatible optics diameter [mm]: 25.4
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.28
- B [mm]: 22
- C [mm]: 30
- D [mm]: 64
- E [mm]: max 137
- F [mm]: max46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.28
- B [mm]: 27
- C [mm]: 30
- D [mm]: 64
- E [mm]: max 137
- F [mm]: max46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- B [mm]: 27
- C [mm]: 30
- D [mm]: 78
- E [mm]: max 150
- F [mm]: max 52
- G [mm]: 39
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 50
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.36
- B [mm]: 46
- C [mm]: 42.5
- D [mm]: 88
- E [mm]: max 160
- F [mm]: max 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 50.8
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.36
- B [mm]: 46
- C [mm]: 42.5
- D [mm]: 88
- E [mm]: max 160
- F [mm]: max 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 10
- Compatible optic thickness [mm]: 1 - 6
- Centering adjustment range: 1
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.025
- A [mm]: 24
- B [mm]: 14
- C [mm]: 37
- D [mm]: 12.5
- E [mm]: 11
- F [mm]: 6
- G [mm]: 7
- H [mm]: 10
- I [mm]: 26
- J [mm]: 1.2
- K [mm]: 6.2
- Compatible optics diameter [mm]: 12.7
- Compatible optic thickness [mm]: 1 - 8
- Centering adjustment range: 2
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.043
- A [mm]: 32
- B [mm]: 22
- C [mm]: 53
- D [mm]: 20
- E [mm]: 13
- F [mm]: 7
- G [mm]: 12
- H [mm]: 12.7
- I [mm]: 41
- J [mm]: 2
- K [mm]: 14.4
- Compatible optics diameter [mm]: 15
- Compatible optic thickness [mm]: 1 - 8
- Centering adjustment range: 2
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.043
- A [mm]: 32
- B [mm]: 22
- C [mm]: 53
- D [mm]: 20
- E [mm]: 13
- F [mm]: 7
- G [mm]: 12
- H [mm]: 15
- I [mm]: 41
- J [mm]: 2
- K [mm]: 14.4
- Compatible optics diameter [mm]: 20
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.22
- A [mm]: 20
- B [mm]: 17
- C [mm]: 58
- D [mm]: 70
- E [mm]: 27.5
- F [mm]: 42
- G [mm]: 29
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.4
- K [mm]: 17.6
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25.4
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 30
- B [mm]: 27
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.26
- A [mm]: 40
- B [mm]: 36
- C [mm]: 78
- D [mm]: 90
- E [mm]: 37.5
- F [mm]: 52
- G [mm]: 39
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 50
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- A [mm]: 50
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 50.8
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- A [mm]: 50.8
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- Compatible optics diameter [mm]: 20
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.2
- A [mm]: 20
- B [mm]: 17
- C [mm]: 58
- D [mm]: 70
- E [mm]: 27.5
- F [mm]: 42
- G [mm]: 29
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.4
- K [mm]: 17.6
- L [mm]: M4
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: M4
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25.4
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: M4
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 30
- B [mm]: 27
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: M4
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.26
- A [mm]: 40
- B [mm]: 36
- C [mm]: 78
- D [mm]: 90
- E [mm]: 37.5
- F [mm]: 52
- G [mm]: 39
- H [mm]: 20
- I [mm]: 7
- L [mm]: M4
- Compatible optics diameter [mm]: 50
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- A [mm]: 50
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- L [mm]: M4
- Compatible optics diameter [mm]: 50.8
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- A [mm]: 50.8
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- L [mm]: M4
- Compatible optics diameter [mm]: 20
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.22
- A [mm]: 20
- B [mm]: 17
- C [mm]: 58
- D [mm]: 70
- E [mm]: 27.5
- F [mm]: 42
- G [mm]: 29
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.4
- K [mm]: 17.6
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 25.4
- B [mm]: 22
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 2 - 12
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.23
- A [mm]: 30
- B [mm]: 27
- C [mm]: 64
- D [mm]: 77
- E [mm]: 30
- F [mm]: 46
- G [mm]: 32
- H [mm]: 18
- I [mm]: 6
- J [mm]: 0.8
- K [mm]: 20.1
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.26
- A [mm]: 40
- B [mm]: 36
- C [mm]: 78
- D [mm]: 90
- E [mm]: 37.5
- F [mm]: 52
- G [mm]: 39
- H [mm]: 20
- I [mm]: 7
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.26
- A [mm]: 50
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- L [mm]: 8-32UNC
- Compatible optics diameter [mm]: 50.8
- Compatible optic thickness [mm]: 2 - 14
- Centering adjustment range: 3
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- A [mm]: 50.8
- B [mm]: 46
- C [mm]: 88
- D [mm]: 100
- E [mm]: 42.5
- F [mm]: 57
- G [mm]: 44
- H [mm]: 20
- I [mm]: 7
- L [mm]: 8-32UNC
