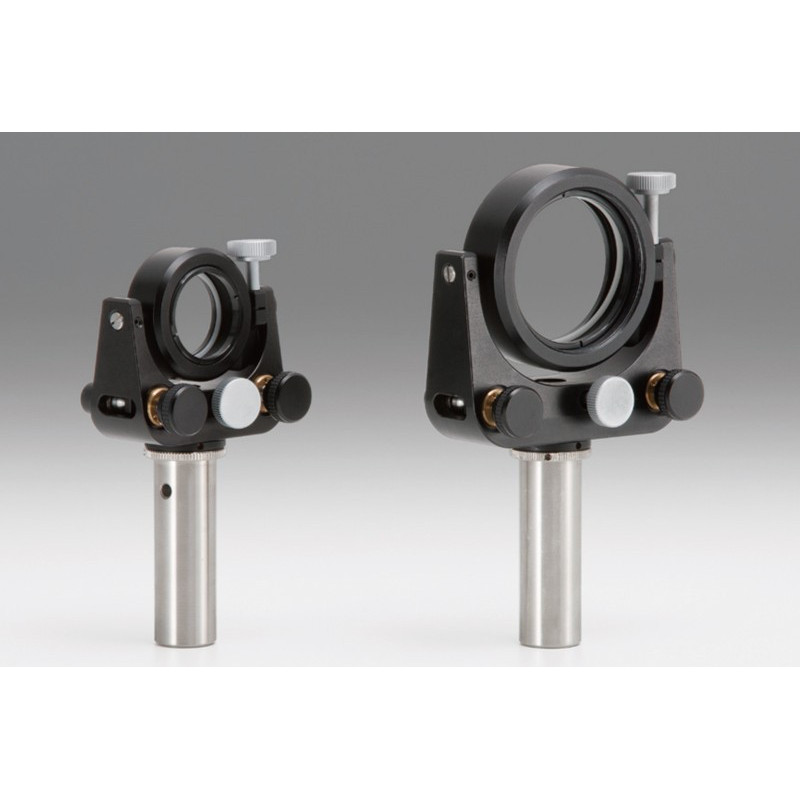

OSE-MHAN-DM: Gimballed Mirror Mounts

Reference number: OSE-MHAN-30DM

Option

Diamètre de l`optique compatible

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 16.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 1.08
Fine adjustment range /rotation [°/rotation]: about 1.35
Ultra fine adjustment resolution tilt [°/rotation]: about 0.11
Ultra fine adjustment resolution rotation [°/rotation]: about 0.14
Ultra fine adjustment indicator conversion tilt [°/DIV] : about 0.002
Ultra fine adjustment indicator conversion rotation [°/DIV]: about 0.002
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.47
