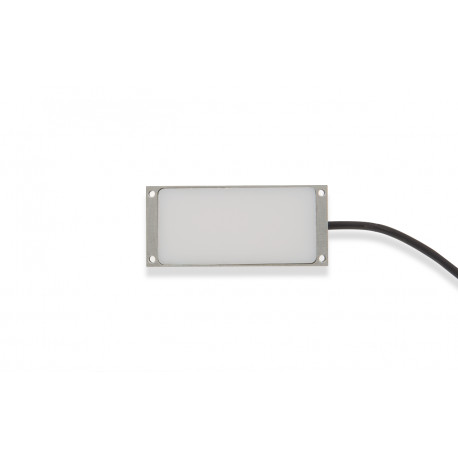

Reference number: GEE-GH
Genesi backlight panels for cameras and diffused light illuminators, continuous or strobe use, standard and custom dimensions.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Backlight |
| Optical properties | |
| Lightcolor | 3K, 4K, 6K, Red, Green, custom |
| Useful length [mm] | see datasheet |
| Beam angle [°] | 120 |
| Cover lens variants | Opaline |
| Typical luminous flux [lm] | 30,000 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 2.4 -25.2 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | 0 to +40 |
| IP rating | 60, 67 |
