Reference number: GEE-GERE-FLAT-DOME

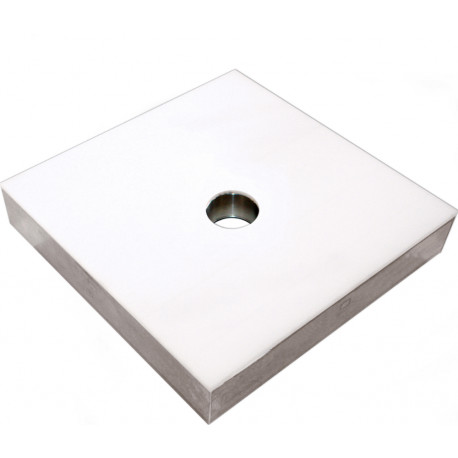

Genesi lighting panels for cameras and diffused light illuminators, continuous or strobe use, standard and custom dimensions
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Flat Dome |
| Optical properties | |
| Lightcolor | 6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, custom |
| Hole diameter [mm] | 30, 40, 60, custom |
| Outer dimensions | see datasheet |
| Cover lens variants | Opaline, transparent, collimating, polarized |
| Typical luminous flux [lm] | 3,450 - 16,125 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 25 - 107.5 |
| Current per LED [mA] | Standard, CC, 100, custom |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | 0 to +40 |
| IP rating | 40, 54 |
