Reference number: GEE-GEVA

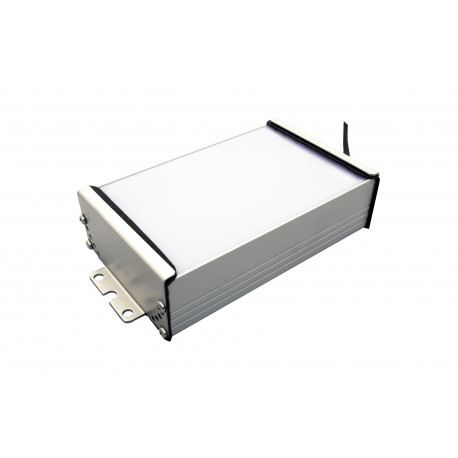

Local lighting of medium and large areas and internal illumination of industrial machines. Genesi illuminator or backlight for vision systems with cameras.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Bar |
| Optical properties | |
| Lightcolor | 6K, 4K,3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom |
| Useful length [mm] | see datasheet |
| Beam angle [°] | 80 - 120 |
| Cover lens variants | Transparent, Opaline |
| Typical luminous flux [lm] | 765 - 10,700 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 5.4 -76.5 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | -35 to +55 |
| IP rating | 54 |
