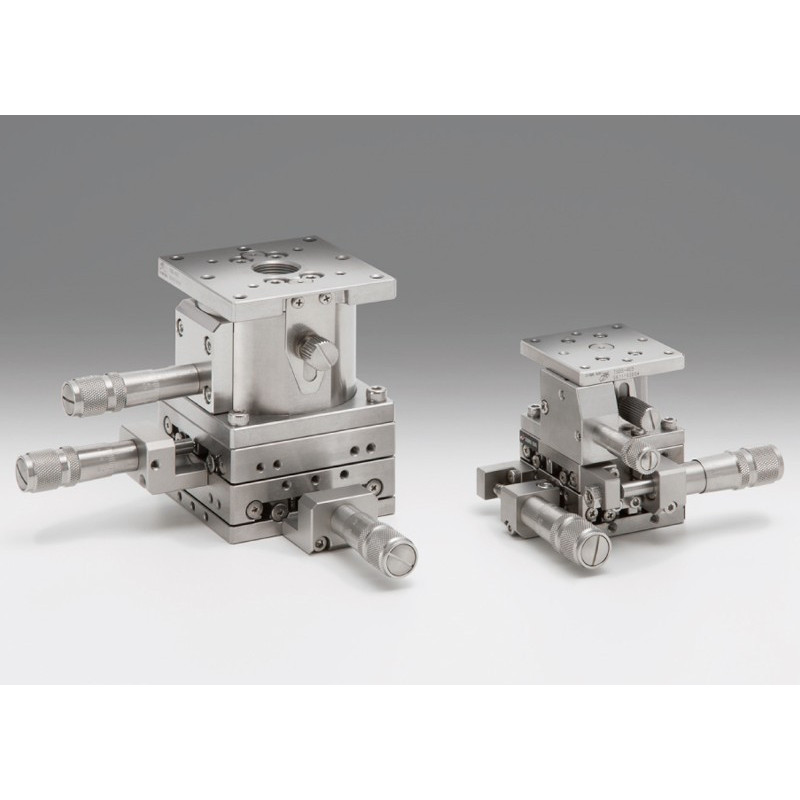

OSE-TSDS-5: XYZ axis, 25 x 25 mm

Reference number: OSE-TSDS-255C

Taille de la table en mm

Version

Position du micromètre

Taille de la table en mm

Version

Position du micromètre

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 130
Gewicht in kg: 0.55

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-405C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 1.9

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-605C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 10.55
Moment Stiffness / Roll [´´/Ncm]: 10.55
Parallelism [µm]: 130
Gewicht in kg: 0.2

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-255S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 130
Gewicht in kg: 0.55

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-405S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 1.9

Downloads

OSE-TSDS-605S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 10.55
Moment Stiffness / Roll [´´/Ncm]: 10.55
Parallelism [µm]: 130
Gewicht in kg: 0.2

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-255C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 130
Gewicht in kg: 0.55

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-405CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 130
Gewicht in kg: 0.55

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-405SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 2.2

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-655C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 2.2

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-655S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 2.2

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-655CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 1
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 130
Gewicht in kg: 2.2

Downloads

OSE-TSDS-5L.pdf

OSE-TSDS-655SUU_STP.zip

ManualStages.zip

Actuators.pdf
