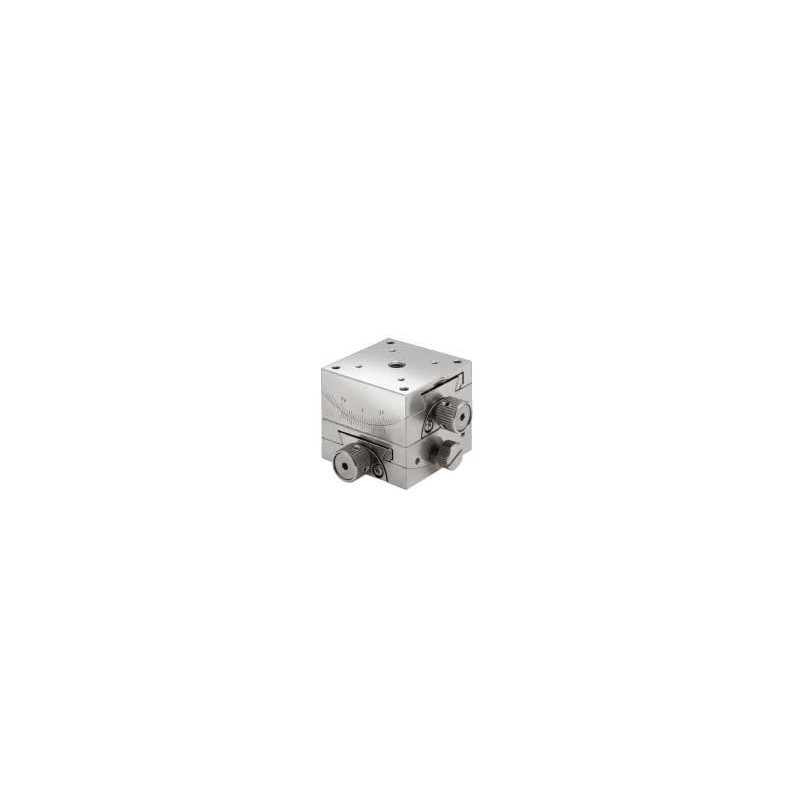

OSE-GOHS-40B15: Vacuum, 40 x 40 mm

search

Reference number: OSE-GOHS-40B15

alt

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

  • Type: Vacuum
  • Tabel Size [mm]: 40 x 40
  • Rotation Center Height [mm]: 15±0.1
  • Angle Range (Upper) Beta axis [ ° ]: ±20
  • Angle Range (Lower) Alpha axis [ ° ] : ±20
  • Vernier Readable Resolution: 12´
  • Travel per Knob Rotation Alpha axis : about 1.74
  • Travel per Knob Rotation Beta axis : about 2.83
  • Rotation Center Displacement [mm]: ?2 or less
  • Bearing type: Dovetail slide method
  • Primary Material: Stainless steel
  • Finish: None
  • Load Capacity [N]: 68.7
  • Max. Moment Capacity / Pitch [Nm]: 0.9
  • Max. Moment Capacity / Roll [Nm]: 0.9
  • Moment Stiffness / Roll [´´/Ncm]: -
  • Parallelism [µm]: 100
  • Gewicht in kg: 0.45
