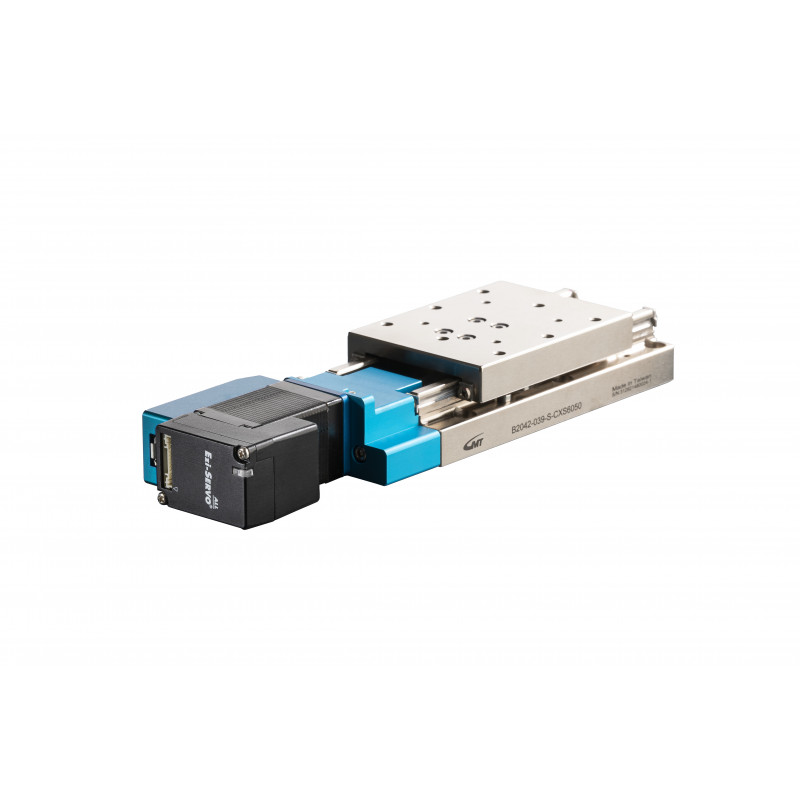

Platines de positionnement CXS series
Reference number: GMT-CXS
Platines de positionnement avec closed loop controller optionnel. Modulaire et assemblable pour les différents axes X, Y et Z,...
Reference number: GMT-CXS
Platines de positionnement avec closed loop controller optionnel. Modulaire et assemblable pour les différents axes X, Y et Z,...
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
Technical Specification
Technical Specification
Table Size 50x50 60x60 80x80
Table Stroke 20, 30, 50 mm ( 50mm only with size 60 and 80 )
Pitch 1mm, Preloaded Ball Screw
Repeatibility /Accuracy +/- 500nm
Max Speed 20 mm/s ( up to 50mm with EZI Servo )
Minimum Step <1µm
Straightness 2µm
Parallelism 10µm
Material Stainless Steel ( Body and rail = one piece )
Motor Nanotec / Fastech 2 Phase Stepper Motor
Connector Harting ix Industrial®
Limit switch Photoelectric
Power Voltage 24V DC
Compatibility any 2 phase Stepper Motor Controller
Controller available with integrated Closed Loop controller
