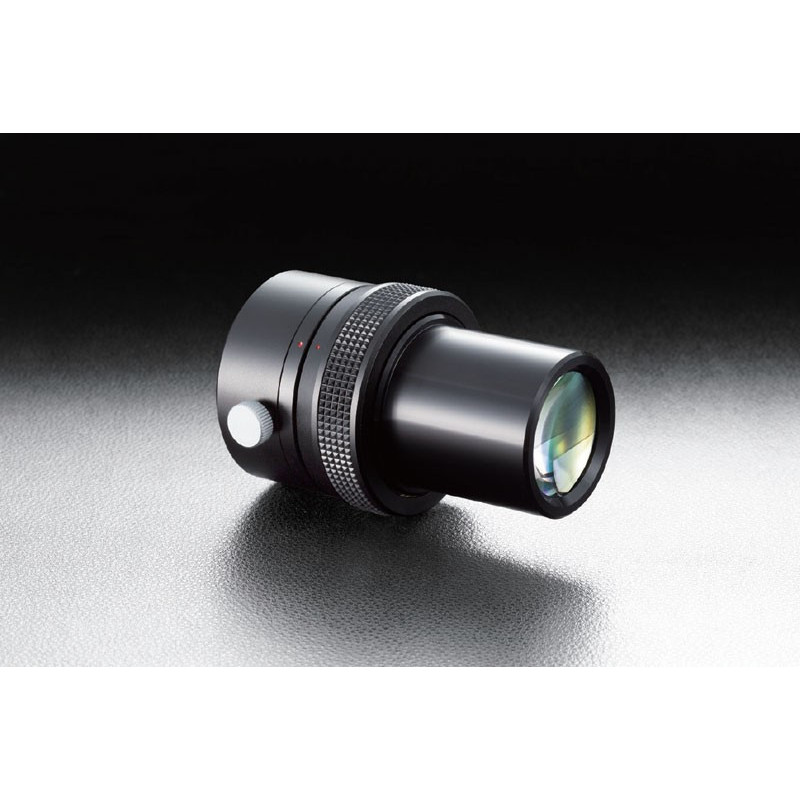

Hochleistungs-Laserstrahlaufweiter

Reference number: OSE-BEHP-3-266

Diese Laserstrahlaufweiter sind für die Verwendung mit einem Hochleistungslaser vorgesehen.

Agrandissement du faisceau

Longueur d`onde de conception en nm

Agrandissement du faisceau

Longueur d`onde de conception en nm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Besoin de plus d'informations ?
Contactez notre expert.

Description

Beam magnification: 3
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 266
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 2
Input Clear aperture [mm]: 10
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-3-266_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 5
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 266
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 2
Input Clear aperture [mm]: 6
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-5-266_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 10
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 266
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 2
Input Clear aperture [mm]: 3
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-10-266_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 3
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 355
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 4
Input Clear aperture [mm]: 10
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-3-355_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 5
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 355
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 4
Input Clear aperture [mm]: 6
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-5-355_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 10
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 355
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 4
Input Clear aperture [mm]: 3
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-10-355_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 3
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 532
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 5
Input Clear aperture [mm]: 10
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-3-532_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 5
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 532
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 5
Input Clear aperture [mm]: 6
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-5-532_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 10
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 532
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 5
Input Clear aperture [mm]: 3
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-10-532_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 3
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 1064
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 7
Input Clear aperture [mm]: 10
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-3-1064_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 5
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 1064
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 7
Input Clear aperture [mm]: 6
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-5-1064_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip

Beam magnification: 10
Material: Synthetic fused silica
Configuration of lens: 2 group 4plates Galilean
Design wavelength [nm]: 1064
Coating: Antireflection coating (Design wavelength: 633nm)
Laser Damage Threshold [J/cm²] : 7
Input Clear aperture [mm]: 3
Angle of view: 2° (full-width)
A range of the length of lens barrel: ±5mm

Downloads

OSE-BEHP-10-1064_STP.zip

OSE-BEHP.pdf

Opt(ME-optics).zip
