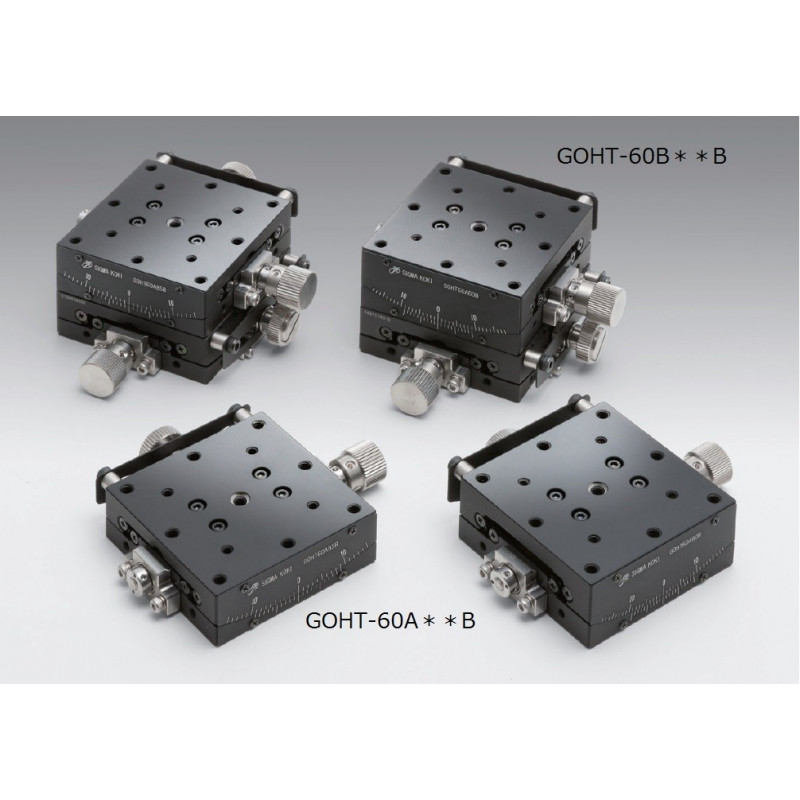

OSE-GOHT-60B: Goniometers, 60 x 60 mm

Reference number: OSE-GOHT-60B35B

Modèle

Hauteur du centre de rotation en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 35±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.46
Travel per Knob Rotation Beta axis : about 2.2
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60B35B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.15
Travel per Knob Rotation Beta axis : about 1.46
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60B60B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 85±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.15
Travel per Knob Rotation Beta axis : about 1.15
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads

OSE-GOHT-60B85B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 35±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.46
Travel per Knob Rotation Beta axis : about 2.2
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60B35BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.15
Travel per Knob Rotation Beta axis : about 1.46
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60B60BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 85±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.15
Travel per Knob Rotation Beta axis : about 1.15
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.2

Downloads
