Reference number: GEE-GEMHR

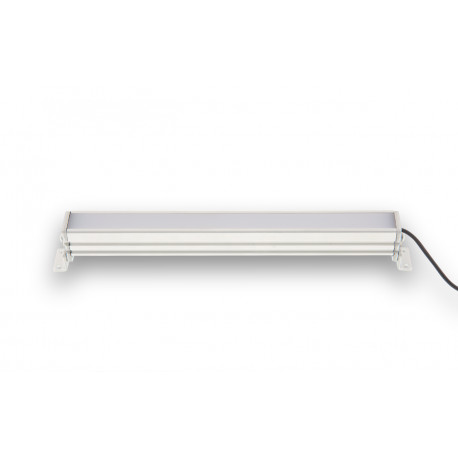

Local lighting of small areas, internal illumination of industrial machines, installations and work benches. Genesi illuminator for vision systems with cameras (IP67).
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Bar |
| Optical properties | |
| Lightcolor | 6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom |
| Useful length [mm] | see datasheet |
| Beam angle [°] | 50 - 160 |
| Cover lens variants | Opaline, transparent, collimating, polarized |
| Typical luminous flux [lm] | 240 - 9,840 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 1.6 - 65.6 |
| Current per LED [mA] | 20 - 300 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | -35 to +55 |
| IP rating | 65, 67 |
