Reference number: GEE-GES

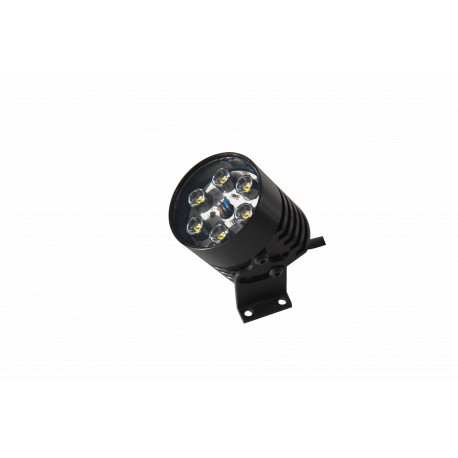

Lighting of medium and large areas, internal illumination of industrial machines and installations. Genesi illuminator for vision systems with cameras.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Light Spot |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
20, 40, 60, 120 |
|
Cover lens variants |
Plexi standard cover, opaline Plexi, safety glass |
|
Typical luminous flux [lm] |
900 - 3,600 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
6 - 24 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +50 |
|
IP rating |
67 |
