Reference number: INO-Cleaver-V7+

The high precision Cleaver V7+ cuts optical fiber very precisely, can be used for a variety of holders for up to twelve ribbon fibers as well as universal holders for 250um, 900um and 3.0mm fibers and flat cables.

alt

Need more info?
Contact our expert.

Fiber Optics Team

Description

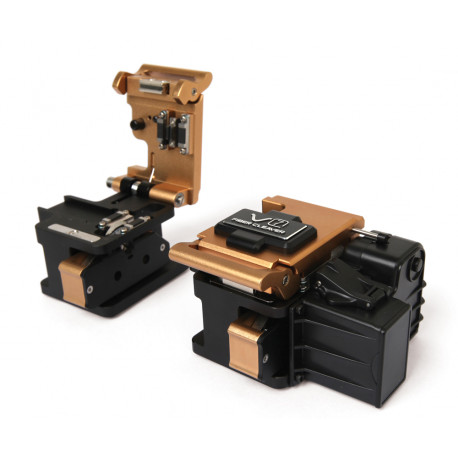

V7+ High Precision Single and Ribbon Fiber Cleaver by INNO Instruments

The V7+ high precision fiber breaking tool cuts glass fiber very precisely. The V7+ can be used for a wide range of holders for up to twelve ribbon fibers as well as universal holders for 250um, 900um and 3.0mm fibers and flat cables. It is simple and easy to operate in two steps to maximize work efficiency. The cutting blades provide more than 48,000 cuts with easy blade position selection. The superior cutting capabilities of the V7+ allow the user to make the most accurate cut to be prepared for the ideal fusion splice.

Characteristics:

  • Compatible for all INNO View fusion splicers.
  • For single fiber and 12 ribbon fiber
  • Very easy handling in 2 steps
  • Automatic transport into the included fiber waste container

Specifications:

  • Dimensions: 46x62x74mm (WxHxD)
  • Weight 340g
  • Single fiber and ribbon fiber
  • Cleaving length single fiber 5-20mm / Ribbon 10-20mm
  • 125µm cladding diameter
  • Fiber types Single 160-900µm Ribbon 2-12
  • Typical cutting angle <0.5degrees
  • Life cycle of cutting wheel 48,000 cleaves
  • Workflow 2
  • Push back of the cutting wheel
  • Universal and Ribbon holder

v7size

Scope of delivery:

  • V7+ Cleaver
  • Pouch
  • Adjustment tools


v7+
