Reference number: EKS-FIMP-XX

High-quality and robust splice boxes in different dimensions and designs as well as for all common coupling variants. All boxes are equipped with splices and guarantee a time-saving, simple installation due to their flexible mounting options.

alt

Need more info?
Contact our expert.

Fiber Optics Team

Description

Industrial splice boxes from EKS

The industrial splice boxes are available in different versions. EKS also develops product and application-specific special solutions, especially according to customer requirements.

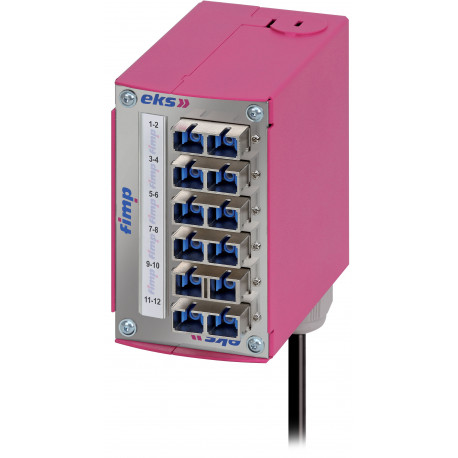

FIMP Industrial Compact Splice Box

  • Powder-coated stainless steel housing: 115mm x 61mm x 113mm
  • Spliceable with splice comb, splice tray, coupling, pigtails, cable gland
  • Coupling variants: SMA, ST, SC, LC, FC-PC, SC-RJ, E2000
  • Simple and time-saving installation
  • Flexible mounting option to control cabinet or housing, hat rail (clip), wall (dual mount kit)

FIMP-REG splice box for serial installation

  • Modular device according to DIN 43880
  • Spliceable with splice comb, splice tray, coupling, pigtails, cable gland
  • Coupling variants: ST, SC, LC
  • Plastic housing with clip for DIN rail mounting

FIMP-S Industrial Compact Splice Box

  • Powder-coated housing: 120 mm x 32 mm x 120 mm
  • Spliceable with splice comb, splice tray, coupling, pigtails, cable gland
  • Coupling variants: SMA, ST, SC, LC, FC-PC, SC-RJ, E2000
  • Mounting: DIN rail (clip) or wall (dual mount kit)

FIMP-XL Industrial Compact Splice Box

  • Spliceable with splice comb, splice tray, coupling, pigtails, cable gland
  • Coupling variants: SMA, ST, SC, LC, FC-PC, SC-RJ, E2000, E-2000 COMPACT
  • Flexible mounting option to control cabinet or housing, hat rail (clip), wall (dual mount kit)
  • FIMPO for adaptation of MPO connection cables

FIMP-XL-HYBRID Industrial compact splice box and patch panel

  • Copper and glass fiber in one module
  • Modular for up to 12 optical fibers and 6 x RJ45 CAT 6A sockets
  • Spliceable with splice comb, splice tray, coupling, pigtails, cable gland
  • Coupling variants: SMA, ST, SC, LC, FC-PC, SC-RJ, E2000, E-2000 COMPACT
  • Flexible mounting option to control cabinet or housing, hat rail (clip), wall (dual mount kit)
  • FIMPO for adaptation of MPO connection cables
