Reference number: LMT-LS-100-12

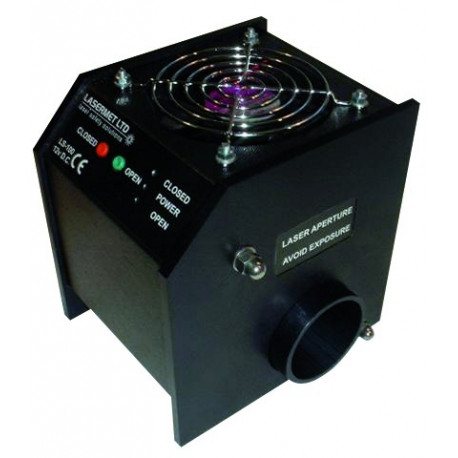

Air-cooled safety shutter with a beam trap (beam dump) laser to 100 W optical power.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Beam shutter

The laser beam shutters of the LMT-LS series are a combination of shutter and beam dump, which can be controlled from the safety control system ICS-5 or ICS-6. They are used to switch off the laser beam during an unauthorized access automatically or manually if the beam is not needed. The shutters are suitable for use with lasers from the current max. 100 W CW-power. The maximum permissible power density amounts 200 kW/m². All shutter series can be used as freestanding shutter for manual or remote-controlled circuit of the beam.

Specifications of the beam shutter

  • Aperture: 50 mm
  • Dimensions: 130 x 150 x 140 mm
  • 12 VDC (0,20 A max.)
  • Current consumption 150 mA
  • Integrated shutter with beam dump and air-cooled heat sink

The shutter is just for an horizontally beam.

Irradiated area

PEL (T2) 100 s

4 mm2

5 MW/m2

1000 mm2

200 kW/m2
