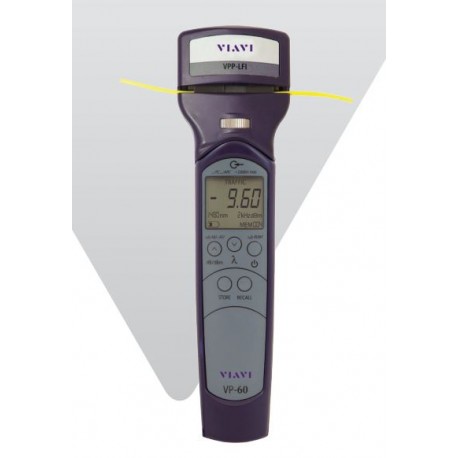

FI-60 Live Fiber Identifier

search
  • fi-60(1).jpg
  • fi-60(1).jpg

Reference number: VIA-FI-60

With the fiber detection device FI-60 light can be detected in the fiber without having to cut the connection.

alt

Need more info?
Contact our expert.

Fiber Optics Team

Description

With the fiber detection device FI-60 light can be detected in the fiber without having to cut the connection. This prevents accidental disconnection of patch cables with traffic and thus occurring network interruptions.

The FI-60 works on fibers with primary coating (250μm) up to the correct patch cords (3mm) without additional adapters.

Removing the probe transforms the FI-60 into a normal power meter to measure the absolute level (dB). Also relative measurements in dBm are possible.

Fiber Detection Specifications:

sheath diameter: 250μm - 3mm (without adapter change)
Wavelength: 850 - 1700nm
Sensitivity: -20dBm @ 1310nm and -30dBm @ 1550nm
Insertion loss: <0.2db 1310nm="" and="" 2db="" 1550nm="" td="">
Detectable frequencies: 270Hz, 330Hz, 1kHz, 2kHz



Specifications Powermeter:

Calibrated wavelengths: 850, 980, 1300, 1310, 1490, 1550,1625nm
Sensitivity: -65 to + 10dBm
Max. Input power: + 23dBm
Measuring accuracy: +/- 0.2dB (+/- 5%)
linearity +/- 0.06dB (-50 - + 5dBm)
adapter Universal for 1.25mm and 2.5mm



General Specifications:

Wavelength: 780 - 1800nm ​​
Batteries: 2x AA for 70h operation
Connection USB 2.0
Storage: up to 100 readings



Supplied with adapters for 1.25 and 2.5mm, USB cable, software, bag.
