TTY via LWL converter

search

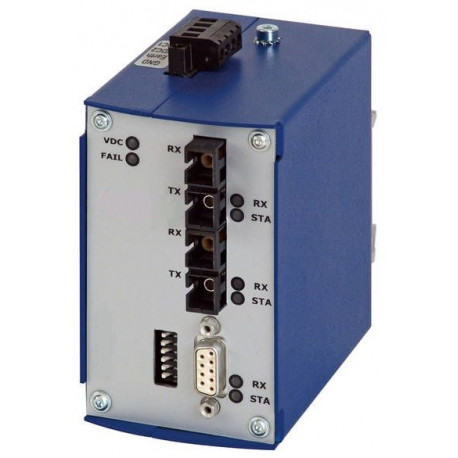

  • tty_front.jpg

Reference number: EKS-010004135-L

The Laser 2000 TTY transmission system forms an asynchronous TTY interface (20mA active, half active or passive), which can be operated half duplex and full duplex.

alt

Need more info?
Contact our expert.

Network Technology Team

Description

The Laser 2000 TTY transmission system forms an asynchronous TTY interface (20mA active, half active or passive), which can be operated half duplex and full duplex.

As important features of transmission with plastic fiber. HCS, multimode or singlemode optical fibers are insensitive to electrical and magnetic interference, the potential separation of transmitter and receiver as well as ranges up to 40km between two fiber optic systems. LEDs and optionally potential-free contacts of an error relay signal faulty states.


In addition to the ST, SC, SC-BIDI and SMA, E2000 is also available as an optical connection variant. All systems can communicate over two fibers as well as over one fiber through BIDI technology with SC connection.


Specifications
Fiber Optic Port ST, SMA, SC, E-2000, FC-PC
fiber types POF 980/1000μm
Fiber - Range Multi-Mode 62.5 (50)/125μm
Single-Mode 9/125μm
up to 100km, others on request
wavelength 650nm to 1300nm
max data rate 19.2 kbps
transmission Full Duplex/Half Duplex
connector 9 pol. SUB-D, female
Status LEDs Power (green)/Receive (yellow)/Status (red)
operating voltage 24V (18 ... 30VDC), other voltages on request
housing Powder Coated Stainless Steel
