Reference number: UNV-P1012-xxx

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 3 %.

alt

Need more info?
Contact our expert.

Laser Safety Team

Description

Laser goggles (575-1800 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1012-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Green*
Daylight transmission: 3 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:

Frames -561, -562, -559G:
190-315 D LB6 + IR LB3
575-1400 DIR LB3
585-1400 DIR LB4
595-720 DIR LB5
605-705 DIR LB6
610-700 D LB6 + IR LB7
750-1400 DIR LB5
780-1400 DIR LB6
802-1400 D LB6 + IR LB7
>1400-1800 DI LB4
10600 DI LB4

Frame -561:

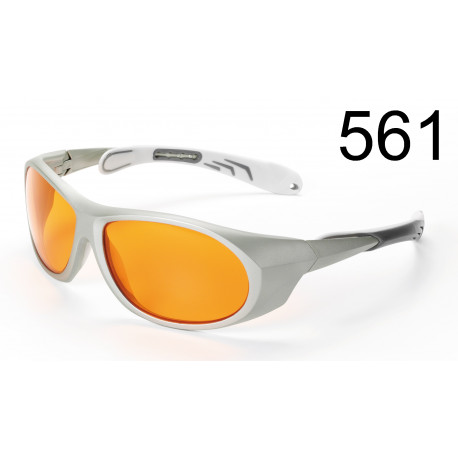

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

Frame -562:
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

Frame -559G:
  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
