Laser Safety Goggle 800-815/1025-1100 nm, Glass Filter

search
  • laserschutzbrille_559g_laser2000(5).jpg
  • 3003.jpg

Reference number: UNV-G3003-xxx

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 67 %.

alt

Need more info?
Contact our expert.

Laser Safety Team

Description

Laser goggles (800-815/1025-1100 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G3003-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Application example: Fiber Lasers, 1025-1100 nm

Filter material: Glass with interference filter
Filter color: Blue*
Daylight transmission: 67 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
800-815 D LB8 + IR LB9
1025-1100 D LB8 + IR LB9 + M LB9Y

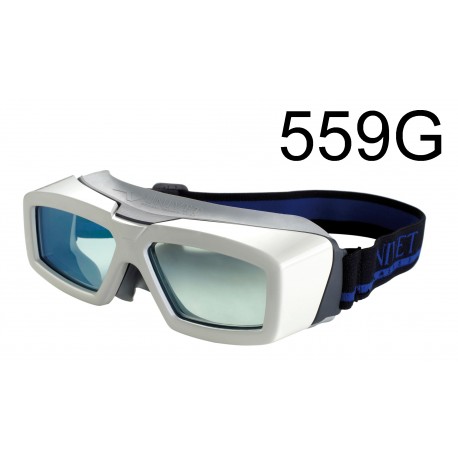

  • Frame -559G:
  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
