Reference number: L2S-CL-Laser

Superior beam quality due to Powell lens technology. This modular system in compact dimensions will also meet your individual requirements.

alt

Need more info?
Contact our expert.

Machine Vision Team

Description

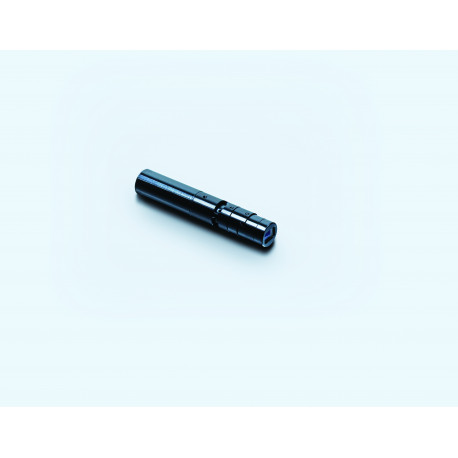

Miniature Line Laser from Osela - The premium laser for machine vision applications

The Osela Compact Laser (CL) for challenging industrial applications and OEM solutions. High-performance, high reliability laser system with excellent position stability and state of the art beam shaping properties.

Characteristics

  • Compact design (10 mm diameter)
  • Superior beam shaping (Powell lens technology)
  • Various wavelengths
  • Individual optical options
  • Externally focussable
  • High Pointing and focus stability
  • Laser classes 1 – 3B
  • Protected against: ESD, reverse polarity, over temperature and overvoltage
  • Up to 2 years warranty

Applications

  • 3D Machine Vision
  • Industrial Inspection
  • Bio-Medical
  • Positioning

Modifications

Example: CL-450-100-RTV-A-45-5V-SF2M-PF50

CL Compact Laser
450 Wavelength: typ. 450 nm
100 Max. diode power: 00 mW
RTV

Digital modulation (Reverse TTL): off 0 - 0,5 V | on 0,7 - 5 V;

Option V for linear variation in output power

A Focus option: A (standard for thin lines)
45 Fan angle: 45°
5V Power supply: 5 VDC
SF2M Output power reduced to laser class: 2M
PF50 Prefocussed to distance: 50 mm



Other available Options:

  • Multi lines and multi points
  • Microcontroller
  • COS4 correction (or other profiles)
  • Micron focus
