Reference number: L2S-SL-Laser

Superior beam quality due to Powell lens technology. This modular system in the standard dimensions will also meet your individual requirements.

alt

Need more info?
Contact our expert.

Machine Vision Team

Description

Osela line laser - the premium segment in 2D and 3D image processing!

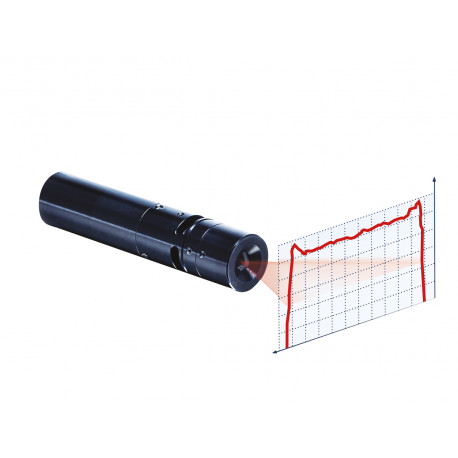

The Osela Streamline Laser (SL) for industrial image processing. High-performance, high reliability laser system with excellent position stability and state of the art beam shaping properties.

Characteristics

  • Superior beam shaping (Powell lens technology)
  • Various wavelengths
  • Individual optical options
  • Externally focussable
  • High Pointing and focus stability
  • Laser classes 1 – 3B
  • Protected against: ESD, reverse polarity, over temperature and overvoltage
  • Up to 2 years warranty

Applications

  • 3D Machine Vision
  • Industrial Inspection
  • Bio-Medical
  • Structured lighting

Modifications

Example: SL-660-35-RT-B-45-24V-SF2M-SD-PF100

SL StreamLine Laser
660 Wavelength: typ. 660 nm
35  Max. diode power: 35 mW
RT  Digital modulation (Reverse TTL): off 0 - 0,5 V | on 0,7 - 5 V
B Fokusoption: B (standard optic for high depth of field)
45 Fan angle: 45°
24V Power supply: 24 V (10 - 28 VDC)
SF2M output power reduced to Laser class 2M
SD Separate driver
PF100 Prefocussed to distance:100 mm



Other available Options:

  • Multi lines and multi points
  • Microcontroller
  • COS4 correction (or other profiles)
  • Micron focus
