Reference number: EKS-e-light-Medienkonverter

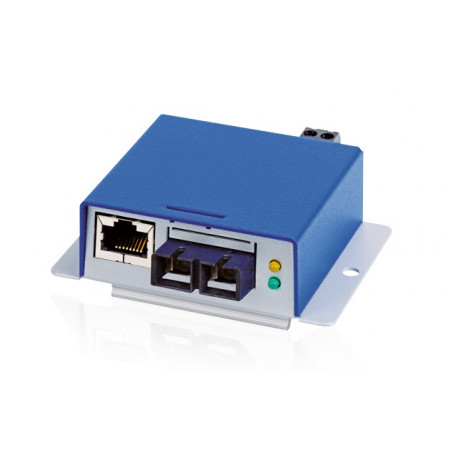

The e-light media converters and switches are especially designed for industrial applications. They have got a robust housing, compact design, a wide temperature range and an extended input voltage range.

alt

Need more info?
Contact our expert.

Network Technology Team

Description

Media Converter Industrial Ethernet

The e-light media converters and switches can be used with all fiber types such as multimode, singlemode POF and HCS (PCF). Furthermore, they feature BiDi technology and can have various connectors such as SMA, ST, SC, FC-PC as well as E-2000. Apart from that a crimpless version for POF fibers is available. Thus, e-light systems can be used in many indoor and outdoor applications.

EL100-XS compact Media Converter – unmanaged:

  • 10/100 MBit/s
  • POF-, HCS-, Multimode- or Singlemode-LWL
  • Auto-Negotiation
  • MDI/MDI-X
  • extended Temperature Range

EL100-S compact Media Converter – unmanaged – IP65:

  • compact Ethernet media converter including M50 screwing
  • pre-assembled cables with Single- or Multimodefiber
  • Can be mounted to cabinet doors or machine housings with a wall thickness of up to 4 mm a
  • Plug-and-play

EL100-3U / EL100-3UP compact Media Converter – unmanaged – PoE:

  • ultra compact dimensions 82 x 93 x 22,5 mm
  • Auto-Negotiation
  • Auto MDI/MDI-X
  • available Operation Modes: Converter / Cut-Through / Store & Forward

EL1000-3G compact Media Converter – unmanaged – Gigabit:

  • ultra compact dimensions82 x 93 x 22,5 mm
  • Auto-Negotiation
  • Auto MDI/MDI-X
  • Modus Store & Forward
