Reference number: RIF-Sidekick Plus

Sidekick® Plus ADSL / VDSL Cable Maintenance Test Set for fault finding an dtrouble shooting on copper infrastructure in telecom applications.

alt

Need more info?
Contact our expert.

Network Technology Team

Description

RIF-Sidekick Plus

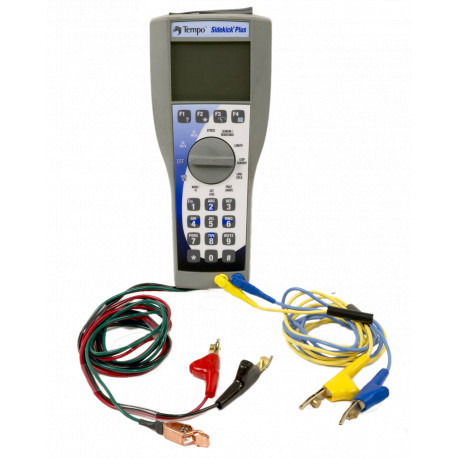

Sidekick Plus Advanced Cable Maintenance Test Set
The Sidekick Plus Advanced Cable Maintenance Test Set is a multifunction test tool that will improve any technician's testing and troubleshooting capabilities on twisted pair. Building on a trusted design and patented technology, this lightweight, hand-held meter quickly and accurately uncovers intermittent troubles that other test sets can't detect.

It uses digital technology to combine VOM and loop current tests, longitudinal balance (Stress Test), transmission and noise, open locator, load coil detection, RFL and a powerful TDR into one easy-to-use test set. Test functions can be selected and used individually, or run automatically by using the innovative Auto-test.

Applications

  • Helps technicians diagnose and troubleshoot problems with twisted pair cable
  • Install, qualify, and maintain DSL services

Features

Bonded Modem With xDSL:

  • Two-pair bonding
  • ADSL2+/VDSL2+
  • Vectoring
  • Broadcom GL-168
  • Automated test scripts
  • USB export/import of test results/profiles
  • 35MHz Wideband Noise Spectrum Analysis
  • 4.4MHz Loss Measurement Test
  • 35MHz Impulse Noise Step
  • TDR with Auto Bridge Tap
  • Detection (Zero Dead Zone)

ADSL/VDSL Modem Sync And Service Tests:

  • DSL Showtime
  • Bits per Tone
  • Signal-to-Noise Ratio
  • HLOG
  • Error Detect
  • Upper Layer Testing
  • (Ping, Trace-Route, HTTP and FTP)

Standard Features:

  • Advanced Dual Trace Pulse TDR (Zero Dead Zone)
  • Resistive Fault Locator (Detects up to 20MΩ)
  • 1GΩ Leakage Test (Insulation Resistance)
  • Longitudinal Balance Test
  • Ground Resistance Test
  • Quite Line Noise (QLN) Test
  • Stress Test
  • AC/DC Voltage
  • Resistance
  • Open Meter
  • Loop Current
  • Circuit Loss
  • Tracing Tone Generator
  • Reference Tone
