Reference number: RIF-20330K/ST

Test kit for measuring optical power and / or attenuation of polymeric plastic fibers (POF) and large diameter fibers (LDF) at a wavelength of 650 nm. The kit consists of a transmitter and receiver as well as optional SOC adapters.

alt

Need more info?
Contact our expert.

Network Technology Team

Description

Complete package for measuring optical power or damping on POF and LDF consisting of:

  • Level transmitter model 573XL (630-670 nm / peak 650 nm)

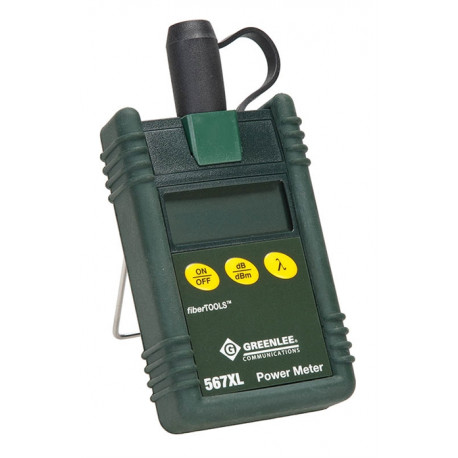

  • Level meter model 567XL (calibrated at 650 nm)
  • Carrying case suitable for all devices
  • SOC adapters for all standard connector systems are available as options

Specifications: Optical transmitter 573XL

  • Central wavelength: 650nm
  • Spectral width: <40nm
  • optical connection: SOC adapter

Optical receiver 567XL-special

  • Wavelengths: 650 (660) / 780 / 850nm
  • Si detector: 3 x 3.5mm
  • Measuring range: + 3dBm to -60dBm
  • optical connection: SOC adapter
