Reference number: EKS-pe-light-II

The pe-light distribution solution is a compact and pre-configured mounting box for outdoor use and special designed for installation into light masts. It allows connecting of IP cameras, traffic control systems or weather monitoring stations via Ethernet to a central office.

alt

Need more info?
Contact our expert.

Network Technology Team

Description

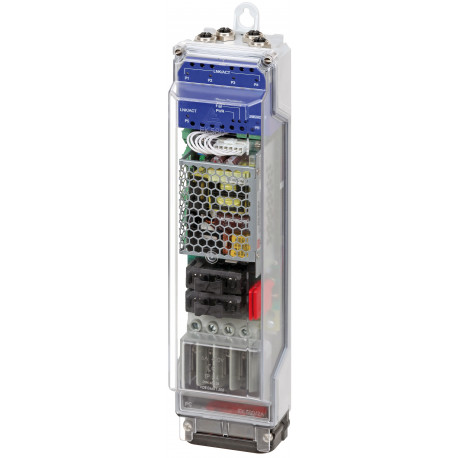

pe-light II – PEL-2 steel light pole mounting box with Gigabit PoE Switch

PE-LIGHT-2 devices are complete industrial solutions for installation in earthed
steel light poles. They comply with the following standards in the valid versions:
  • DIN EN 40-5 requirements for steel lighting pylons
  • DIN 49778 Light masts, equipment jamb with sliding nut

The PE-LIGHT-2 consists of a PoE managed gigabit Ethernet switch with four xcoded
M12 connectors and up to two fiber-optic connections for multimode or
singlemode optical fibers, that are combined together with splice tray, power
supply unit, fuses and connection terminal in a compact housing.
