Reference number: GEE-GEMHR

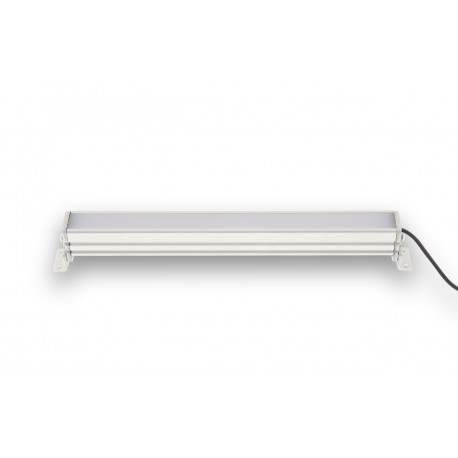

Local lighting of small areas, internal illumination of industrial machines, installations and work benches. Genesi illuminator for vision systems with cameras (IP67).
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Bar |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
50 - 160 |
|
Cover lens variants |
Opaline, transparent, collimating, polarized |
|
Typical luminous flux [lm] |
240 - 9,840 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
1.6 - 65.6 |
|
Current per LED [mA] |
20 - 300 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
-35 to +55 |
|
IP rating |
65, 67 |
