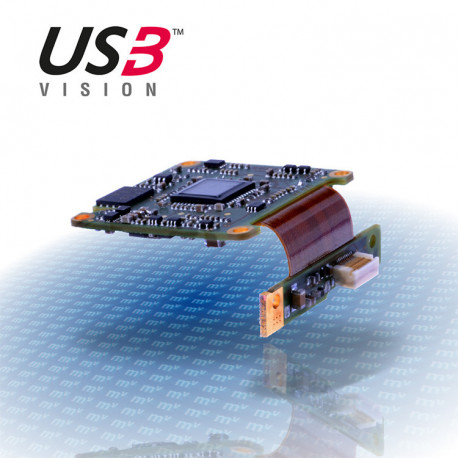

USB 3.0 Camera, 10.7 MP Color

search

Reference number: MAV-mvBlueFOX3-M1100C

USB 3.0 (USB3 Vision) Machine Vision Camera;
3856 x 2764 Pixel; 7.3 fps; Color; Sensor format 1/2.3

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name USB 3.0 Machine Vision Camera, 10.7 MP, Color
Short description USB 3.0 (USB3 Vision) Machine Vision Camera;
3856 x 2764 Pixel; 7.3 fps; Color; Sensor format 1/2.3
Reference MAV-mvBlueFOX3-M1100C
Camera Interface USB 3.0 (USB3 Vision)
Camera type Board Level Camera
Sensor Aptina MT9J003
Resolution in Mp 10.7
Resolution 3856 x 2764
Frame rate in fps 7.3
Sensor format 1/2.3
Pixel size in µm 1.67 x 1.67
Chromatics Color
Lens mount
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 7
Dimensions 34.5 mm x 34.5 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
