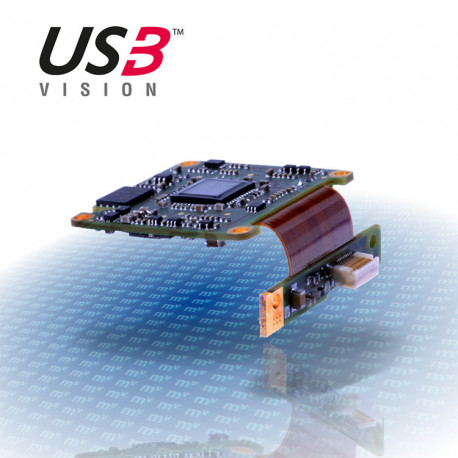

USB 3.0 Camera, 1.9 MP Mono

search

Reference number: MAV-mvBlueFOX3-M1020aG

USB 3.0 (USB3 Vision) Machine Vision Camera;
1600 x 1200 Pixel; 60 fps; Mono; Sensor format 1/1.8

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name USB 3.0 Machine Vision Camera, 1.9 MP, Mono
Short description USB 3.0 (USB3 Vision) Machine Vision Camera;
1600 x 1200 Pixel; 60 fps; Mono; Sensor format 1/1.8
Reference MAV-mvBlueFOX3-M1020aG
Camera Interface USB 3.0 (USB3 Vision)
Camera type Board Level Camera
Sensor e2v EV76C570
Resolution in Mp 1.9
Resolution 1600 x 1200
Frame rate in fps 60
Sensor format 1/1.8
Pixel size in µm 4.5 x 4.5
Chromatics Mono
Lens mount
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 7
Dimensions 34.5 mm x 34.5 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
