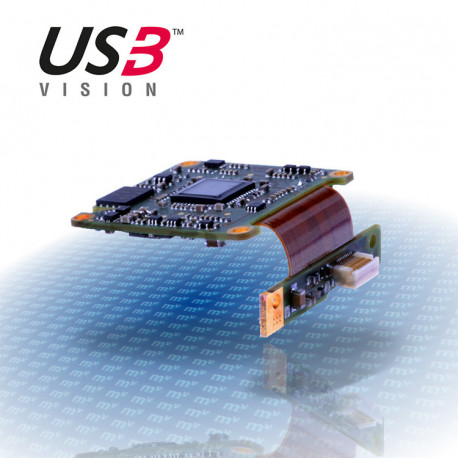

Reference number: MAV-mvBlueFOX3-M1013GE
USB 3.0 (USB3 Vision) Machine Vision Camera;
1280 x 1024 Pixel; 60 fps; Mono; Sensor format 1/1.8
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | USB 3.0 Machine Vision Camera, 1.3 MP, Mono |
| Short description | USB 3.0 (USB3 Vision) Machine Vision Camera; 1280 x 1024 Pixel; 60 fps; Mono; Sensor format 1/1.8 |
| Reference | MAV-mvBlueFOX3-M1013GE |
| Camera Interface | USB 3.0 (USB3 Vision) |
| Camera type | Board Level Camera |
| Sensor | e2v EV76C661 |
| Resolution in Mp | 1.3 |
| Resolution | 1280 x 1024 |
| Frame rate in fps | 60 |
| Sensor format | 1/1.8 |
| Pixel size in µm | 5.3 x 5.3 |
| Chromatics | Mono |
| Lens mount | |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 7 |
| Dimensions | 34.5 mm x 34.5 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
