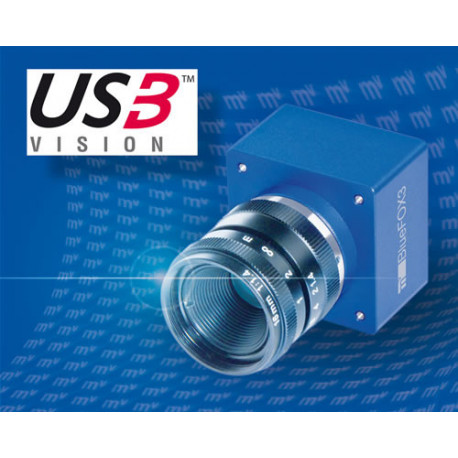

Reference number: MAV-mvBlueFOX3-1031C
USB 3.0 (USB3 Vision) Machine Vision Camera;
2048 x 1536 Pixel; 21 fps; Color; Sensor format 1/3
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | USB 3.0 Machine Vision Camera, 3.1 MP, Color |
| Short description | USB 3.0 (USB3 Vision) Machine Vision Camera; 2048 x 1536 Pixel; 21 fps; Color; Sensor format 1/3 |
| Reference | MAV-mvBlueFOX3-1031C |
| Camera Interface | USB 3.0 (USB3 Vision) |
| Camera type | Standard Camera |
| Sensor | Aptina AR0331 |
| Resolution in Mp | 3.1 |
| Resolution | 2048 x 1536 |
| Frame rate in fps | 21 |
| Sensor format | 1/3 |
| Pixel size in µm | 2.2 x 2.2 |
| Chromatics | Color |
| Lens mount | CS |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 58.5 |
| Dimensions | 24 mm x 39 mm x 39 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
