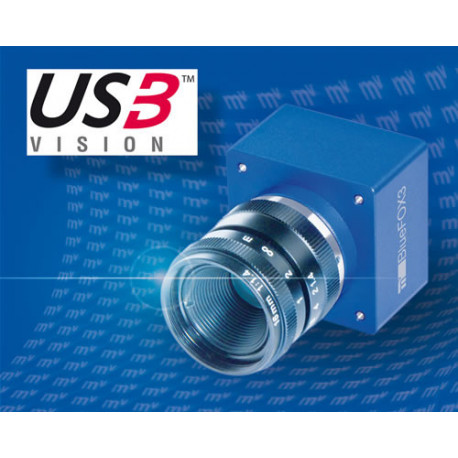

USB 3.0 Camera, 1.2 MP Color

search

Reference number: MAV-mvBlueFOX3-1012dC

USB 3.0 (USB3 Vision) Machine Vision Camera;
1280 x 960 Pixel; 45.7 fps; Color; Sensor format 1/3

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name USB 3.0 Machine Vision Camera, 1.2 MP, Color
Short description USB 3.0 (USB3 Vision) Machine Vision Camera;
1280 x 960 Pixel; 45.7 fps; Color; Sensor format 1/3
Reference MAV-mvBlueFOX3-1012dC
Camera Interface USB 3.0 (USB3 Vision)
Camera type Standard Camera
Sensor Aptina MT9M034
Resolution in Mp 1.2
Resolution 1280 x 960
Frame rate in fps 45.7
Sensor format 1/3
Pixel size in µm 3.75 x 3.75
Chromatics Color
Lens mount CS
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 58.5
Dimensions 24 mm x 39 mm x 39 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
