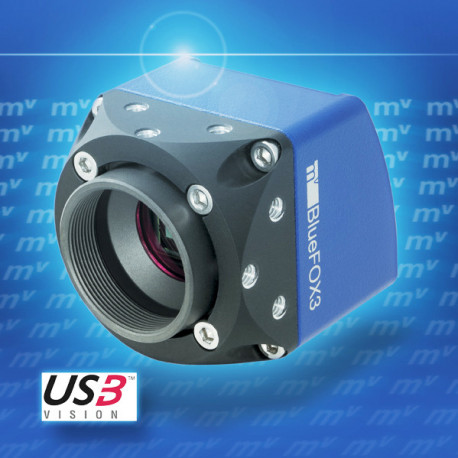

Reference number: MAV-mvBlueFOX3-2064G
USB 3.0 (USB3 Vision) Machine Vision Camera;
3096 x 2080 Pixel; 50.1 fps; Mono; Sensor format 1/1.8
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | USB 3.0 Machine Vision Camera, 6.4 MP, Mono |
| Short description | USB 3.0 (USB3 Vision) Machine Vision Camera; 3096 x 2080 Pixel; 50.1 fps; Mono; Sensor format 1/1.8 |
| Reference | MAV-mvBlueFOX3-2064G |
| Camera Interface | USB 3.0 (USB3 Vision) |
| Camera type | Standard Camera |
| Sensor | Sony IMX178 |
| Resolution in Mp | 6.4 |
| Resolution | 3096 x 2080 |
| Frame rate in fps | 50.1 |
| Sensor format | 1/1.8 |
| Pixel size in µm | 2.4 x 2.4 |
| Chromatics | Mono |
| Lens mount | C |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 94 |
| Dimensions | 37.7 mm x 39.8 mm x 39.8 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
