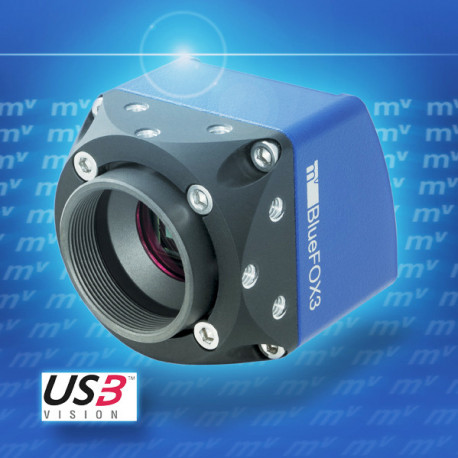

USB 3.0 Camera, 3.2 MP Mono

search

Reference number: MAV-mvBlueFOX3-2032aG

USB 3.0 (USB3 Vision) Machine Vision Camera;
2064 x 1544 Pixel; 55 fps; Mono; Sensor format 1/1.8

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name USB 3.0 Machine Vision Camera, 3.2 MP, Mono
Short description USB 3.0 (USB3 Vision) Machine Vision Camera;
2064 x 1544 Pixel; 55 fps; Mono; Sensor format 1/1.8
Reference MAV-mvBlueFOX3-2032aG
Camera Interface USB 3.0 (USB3 Vision)
Camera type Standard Camera
Sensor Sony IMX265
Resolution in Mp 3.2
Resolution 2064 x 1544
Frame rate in fps 55
Sensor format 1/1.8
Pixel size in µm 3.45 x 3.45
Chromatics Mono
Lens mount C
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 94
Dimensions 37.7 mm x 39.8 mm x 39.8 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
