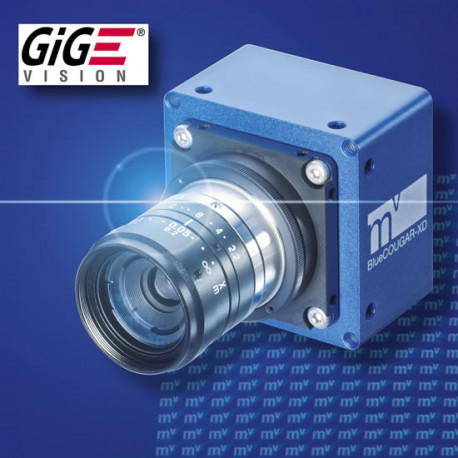

Dual Gigabit Ethernet Camera, 12 MP Color

search

Reference number: MAV-mvBlueCOUGAR-XD1212aC

Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
4248 x 2836 Pixel; 7.5 fps; Color; Sensor format 1

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name Dual Gigabit Ethernet Machine Vision Camera, 12 MP, Color
Short description Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
4248 x 2836 Pixel; 7.5 fps; Color; Sensor format 1
Reference MAV-mvBlueCOUGAR-XD1212aC
Camera Interface Dual Gigabit Ethernet (GigE Vision)
Camera type Standard Camera
Sensor Sony ICX834
Resolution in Mp 12.0
Resolution 4248 x 2836
Frame rate in fps 7.5
Sensor format 1
Pixel size in µm 3.1 x 3.1
Chromatics Color
Lens mount C
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 200
Dimensions 32 mm x 50 mm x 50 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
