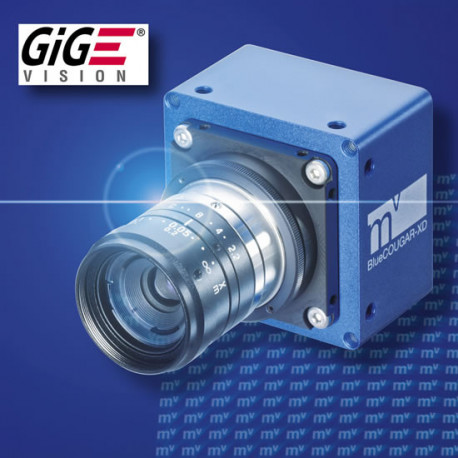

Dual Gigabit Ethernet Camera, 2.8 MP Mono

search

Reference number: MAV-mvBlueCOUGAR-XD124aG

Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
1936 x 1460 Pixel; 64.5 fps; Mono; Sensor format 2/3

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name Dual Gigabit Ethernet Machine Vision Camera, 2.8 MP, Mono
Short description Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
1936 x 1460 Pixel; 64.5 fps; Mono; Sensor format 2/3
Reference MAV-mvBlueCOUGAR-XD124aG
Camera Interface Dual Gigabit Ethernet (GigE Vision)
Camera type Standard Camera
Sensor Sony ICX674
Resolution in Mp 2.8
Resolution 1936 x 1460
Frame rate in fps 64.5
Sensor format 2/3
Pixel size in µm 4.54 x 4.54
Chromatics Mono
Lens mount C
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 200
Dimensions 32 mm x 50 mm x 50 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
