Reference number: MAV-mvBlueCOUGAR-XD109bC

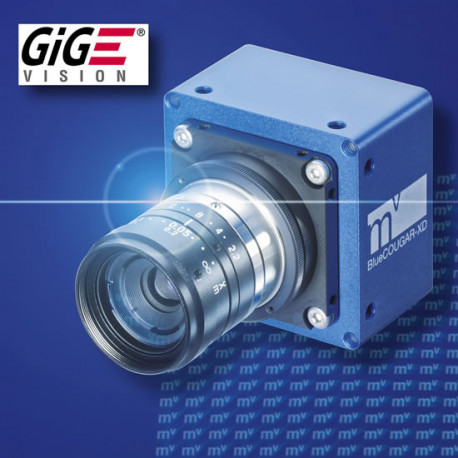

Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
4112 x 2176 Pixel; 32.2 fps; Color; Sensor format 1
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | Dual Gigabit Ethernet Machine Vision Camera, 8.9 MP, Color |
| Short description | Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera; 4112 x 2176 Pixel; 32.2 fps; Color; Sensor format 1 |
| Reference | MAV-mvBlueCOUGAR-XD109bC |
| Camera Interface | Dual Gigabit Ethernet (GigE Vision) |
| Camera type | Standard Camera |
| Sensor | Sony IMX267 |
| Resolution in Mp | 8.9 |
| Resolution | 4112 x 2176 |
| Frame rate in fps | 32.2 |
| Sensor format | 1 |
| Pixel size in µm | 3.45 x 3.45 |
| Chromatics | Color |
| Lens mount | C |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 200 |
| Dimensions | 32 mm x 50 mm x 50 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
