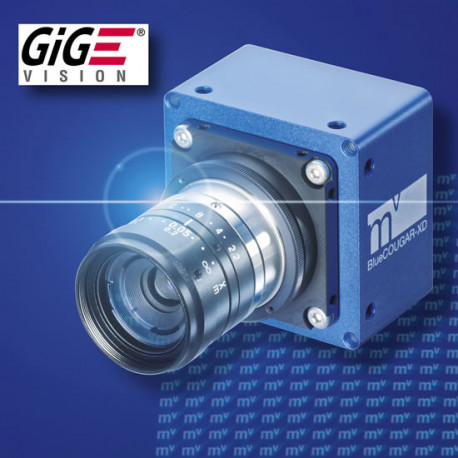

Dual Gigabit Ethernet Camera, 7.1 MP Mono

search

Reference number: MAV-mvBlueCOUGAR-XD107G

Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
3216 x 2208 Pixel; 44.1 fps; Mono; Sensor format 1.1

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product name Dual Gigabit Ethernet Machine Vision Camera, 7.1 MP, Mono
Short description Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
3216 x 2208 Pixel; 44.1 fps; Mono; Sensor format 1.1
Reference MAV-mvBlueCOUGAR-XD107G
Camera Interface Dual Gigabit Ethernet (GigE Vision)
Camera type Standard Camera
Sensor Sony IMX420
Resolution in Mp 7.1
Resolution 3216 x 2208
Frame rate in fps 44.1
Sensor format 1.1
Pixel size in µm 4.5 x 4.5
Chromatics Mono
Lens mount C
Optical filter IR-cut; DL-cut; Clear glass window
Trigger modes Rising edge, Falling edge, Software trigger,
Configurable exposure delay
Weight in g 200
Dimensions 32 mm x 50 mm x 50 mm
Operating temperature 0 °C- 45 °C
Storage temperature -20 °C- 60 °C
Technical certificate CE
Environmental certificate RoHS; WEEE
