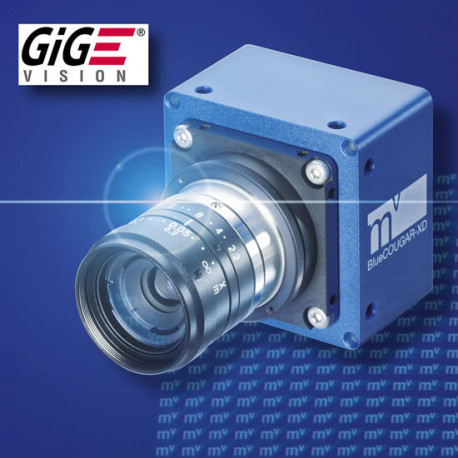

Reference number: MAV-mvBlueCOUGAR-XD204bG
Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
2048 x 2048 Pixel; 27 fps; Mono; Sensor format 1
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | Dual Gigabit Ethernet Machine Vision Camera, 4.2 MP, Mono |
| Short description | Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera; 2048 x 2048 Pixel; 27 fps; Mono; Sensor format 1 |
| Reference | MAV-mvBlueCOUGAR-XD204bG |
| Camera Interface | Dual Gigabit Ethernet (GigE Vision) |
| Camera type | Standard Camera |
| Sensor | CMOSIS CMV4000 |
| Resolution in Mp | 4.2 |
| Resolution | 2048 x 2048 |
| Frame rate in fps | 27 |
| Sensor format | 1 |
| Pixel size in µm | 5.5 x 5.5 |
| Chromatics | Mono |
| Lens mount | C |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 200 |
| Dimensions | 32 mm x 50 mm x 50 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
